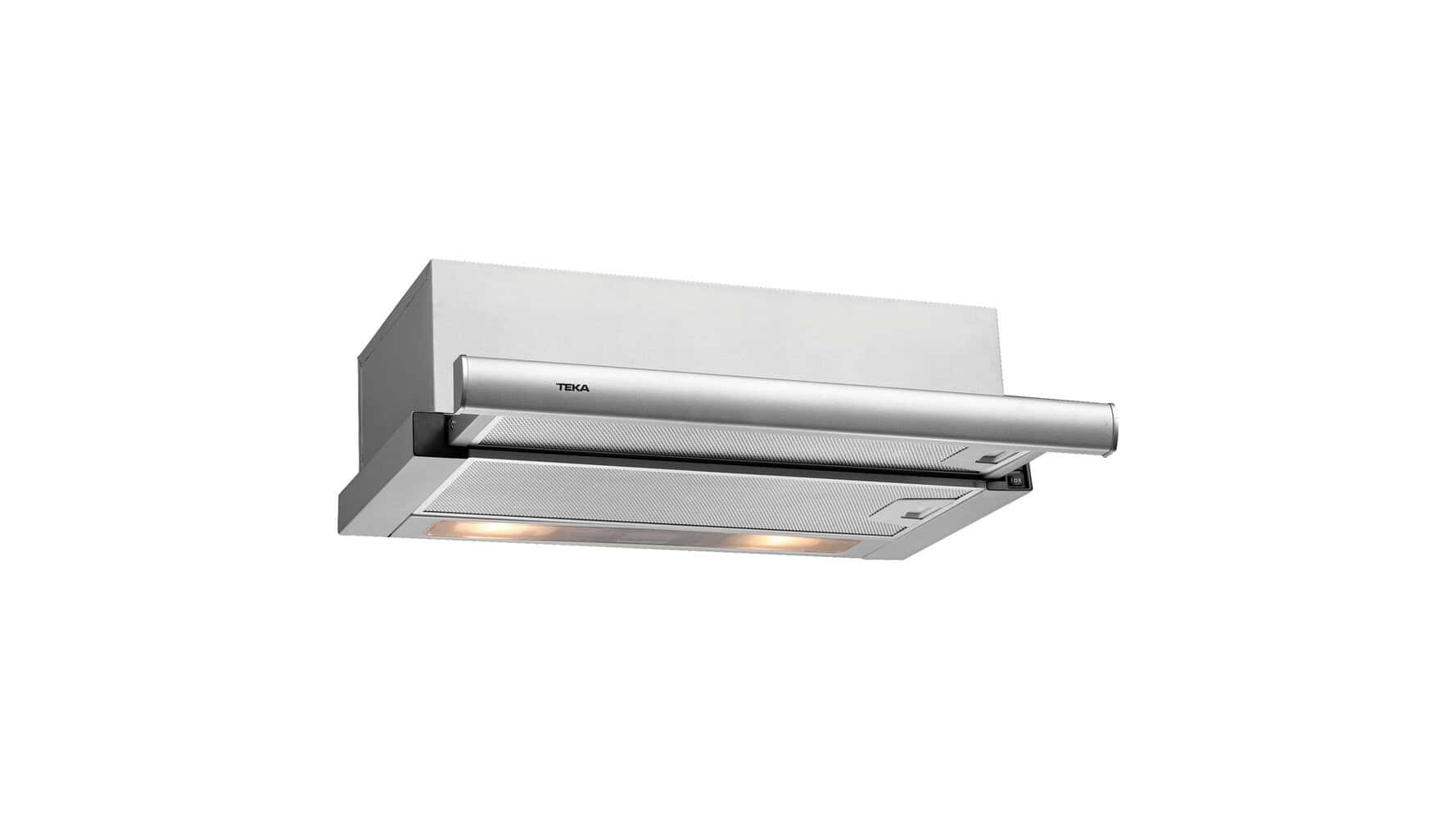

TEKA EASY TL 6310 Under Cabinet Pull-out Hood – 60cm

Singular Features

• Pull-out hood
• Mechanical control panel
• 2 speeds
• Exhaust capacities:
• Free Outlet, m³/h: 366
• Max., m3/h: 332
• Min., m³/h: 233
• Noise (LwA) Max Speed, dB: 65
• Noise (LwA) Min Speed, dB: 56
• 2 Integrated LED lamps
• 4 aluminium filters
• Automatic Lighting
• Exchangeable Front Panel

Technical Details

Interior measurements

• Inner Height (mm): 181

General measures

• Product height (mm): 181
• Product width (mm): 600
• Product depth (mm): 304-437
• Net weight (Kg): 6,1

 View technical drawing

Particular characterisitics

• Certificates: CE; CB; Rohs
• Ø Outlet (mm): 120
• Type of inner light: LED
• Inside light Consumption (W): 6
• Plug type: European plug
• Cable Connection Length (cm): 150
• Power rate (V): 230
• Frequency (Hz): 50
• Total hood power (W): 146
• Number of motors: 1
• Motor power (W): 130

Accessories

• Anti Return valve: Yes
• Outlet extension: no
• Optional Charcoal Filter: CNL 1C

Models

• Number of filters: 2
• Filter description: Aluminium
• Control panel: Mechanical control
• Automatic lighting: Yes
• Number of speeds: 2

Downloads

 Manuals

 Product card

 Technical drawing

 Family catalogue

 High resolution images

 Energy label

 EU Product Information Sheet

NOTE: Listed price excludes installation; contact us for installation charges
