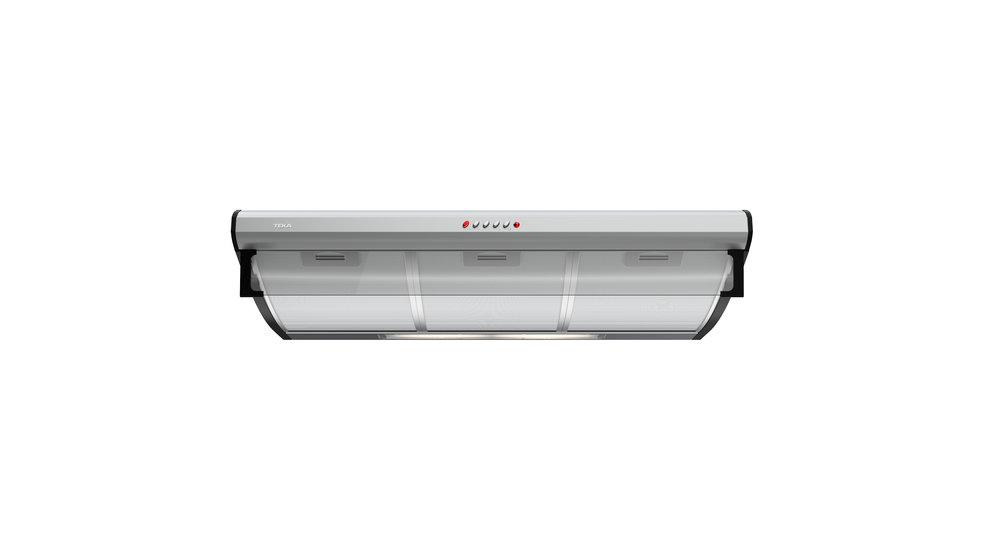

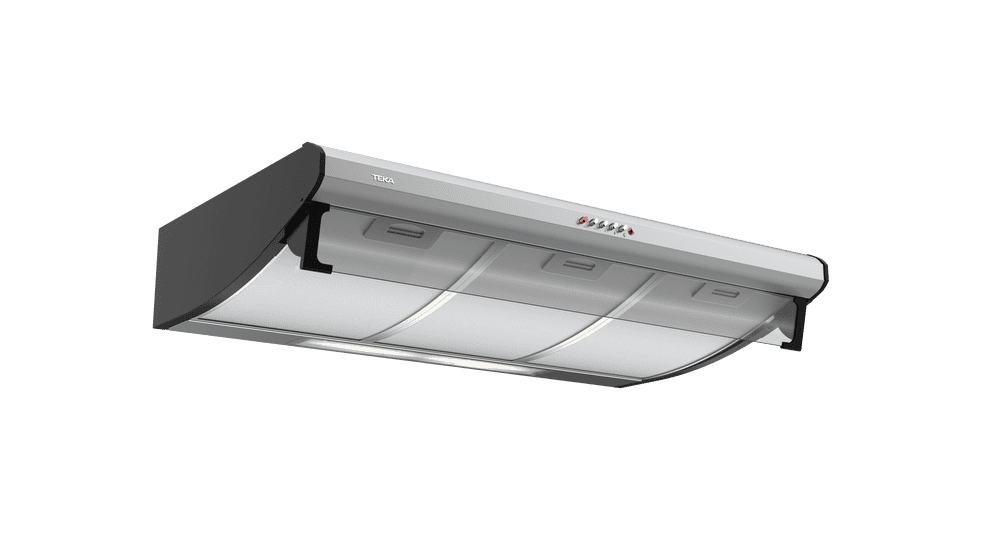

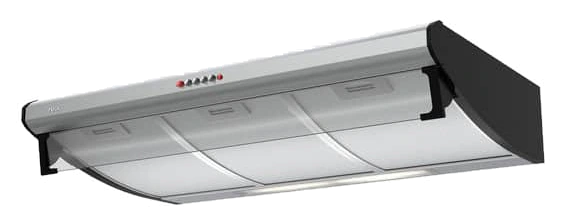

TEKA EASY C 9310 90cm Classic Hood with 3 speeds

Singular Features

• Push buttoms control panel (SS models)
• Energy efficiency: E
• Operating pilot light
• 3 speeds
• Exhaust capacities:
• Free Outlet, m³/h: 254
• Max., m³/h: 235
• Min., m³/h: 124
• Noise (LwA) Max Speed, dB: 62
• Noise (LwA) Min Speed, dB: 45
• 2 halogen lamps
• 3 aluminium filters
• Finger Print Proof Front Panel (SS)

Technical Details

General measures

• Product height (mm): 150
• Product width (mm): 900
• Product depth (mm): 500
• Net weight (Kg): 8,53

 View technical drawing

Particular characterisitics

• Certificates: CE; CB; Rohs
• Ø Outlet (mm): 120
• Type of inner light: LED
• Inside light Consumption (W): 6
• Plug type: European plug
• Power rate (V): 230
• Frequency (Hz): 50
• Total hood power (W): 120
• Number of motors: 1
• Motor power (W): 108

Accessories

• Anti Return valve: Yes
• Outlet extension: Yes
• Optional Charcoal Filter: C2R
• Integration Frontal panel Code: No
• Conventional recirculation kit (opt) – w/tube cover: No

Models

• Number of filters: 3
• Filter description: Aluminum
• Control panel: Mechanical push bottons
• Number of speeds: 3
• Fingerprint proof front panel: Yes

Downloads

 Manuals

 Product card

 Technical drawing

 Family catalogue

 High resolution images

 Energy label

 3D

 EU Product Information Sheet

NOTE: Listed price excludes installation; contact us for installation charges.
