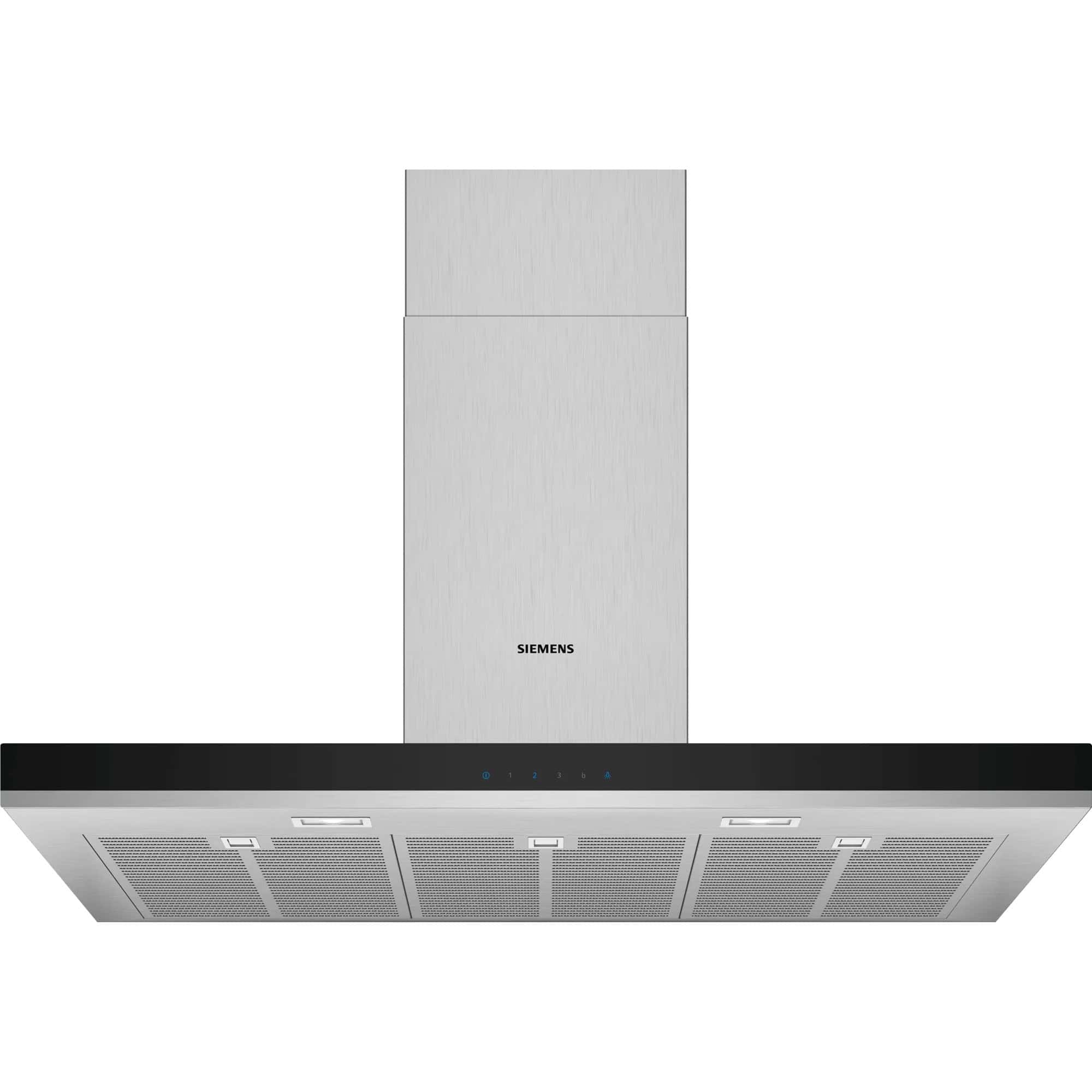

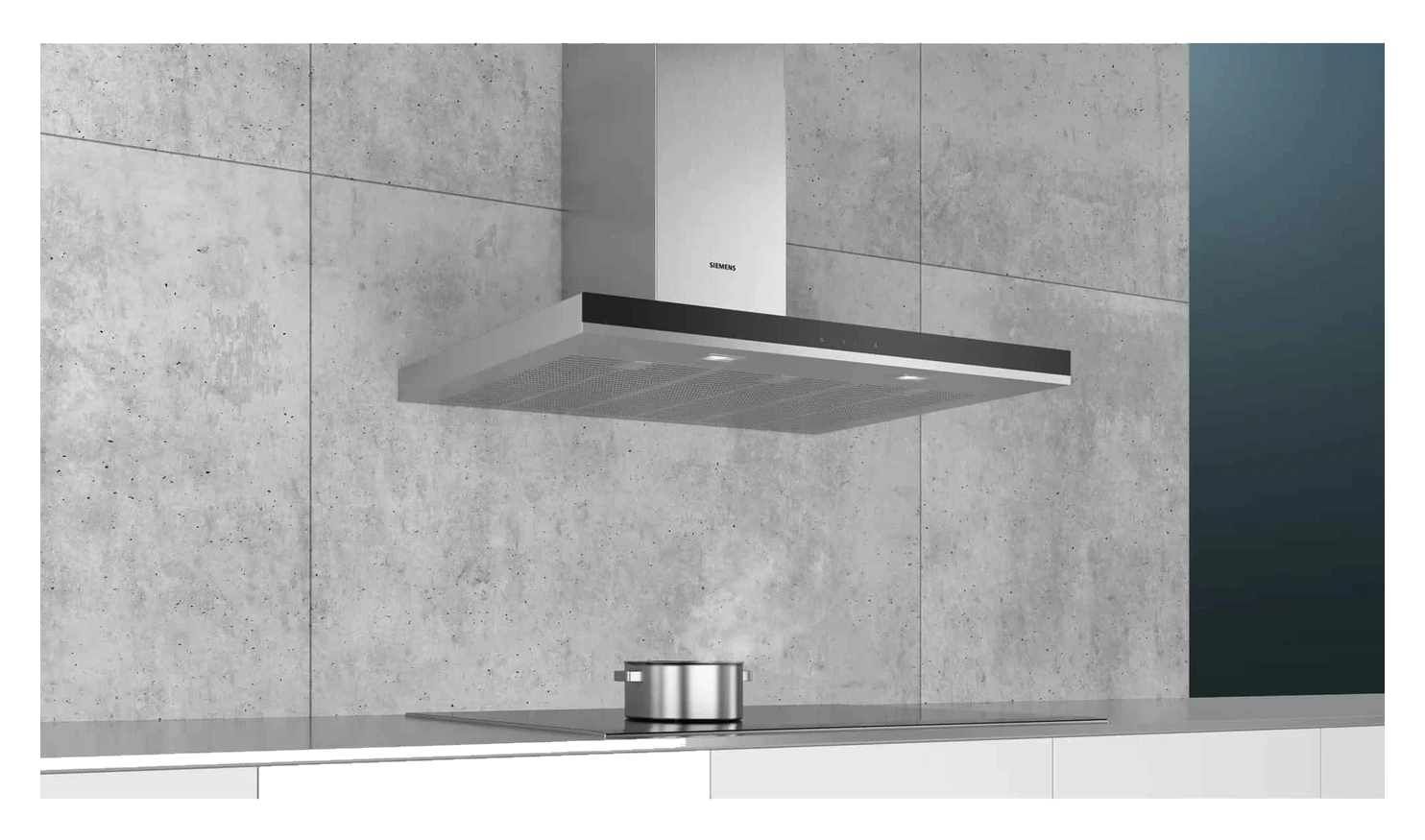

Siemens Wall-mounted Hood Stainless Steel 90cm – LC97BHM50B

Extractor hood in Box design with high extraction rate.

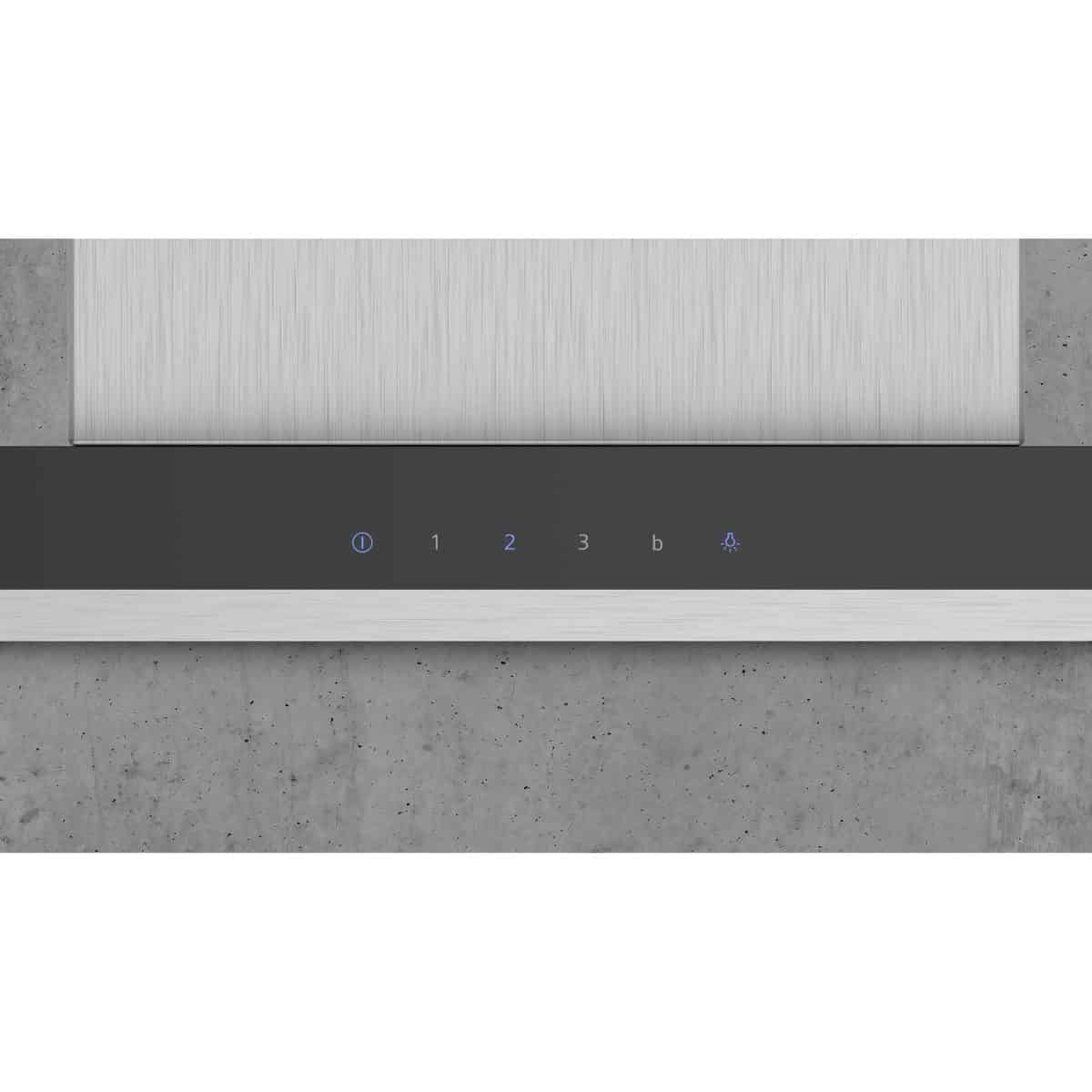

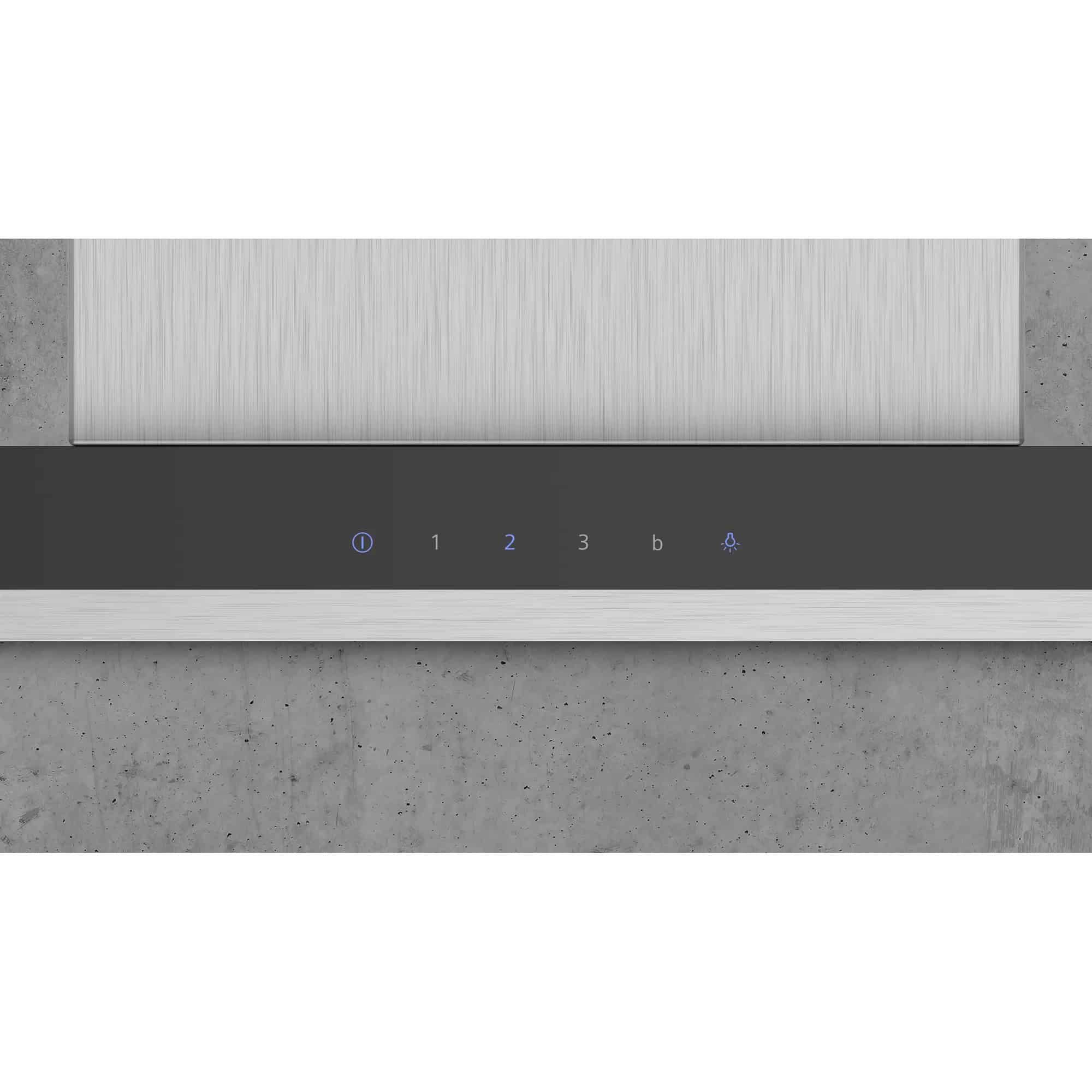

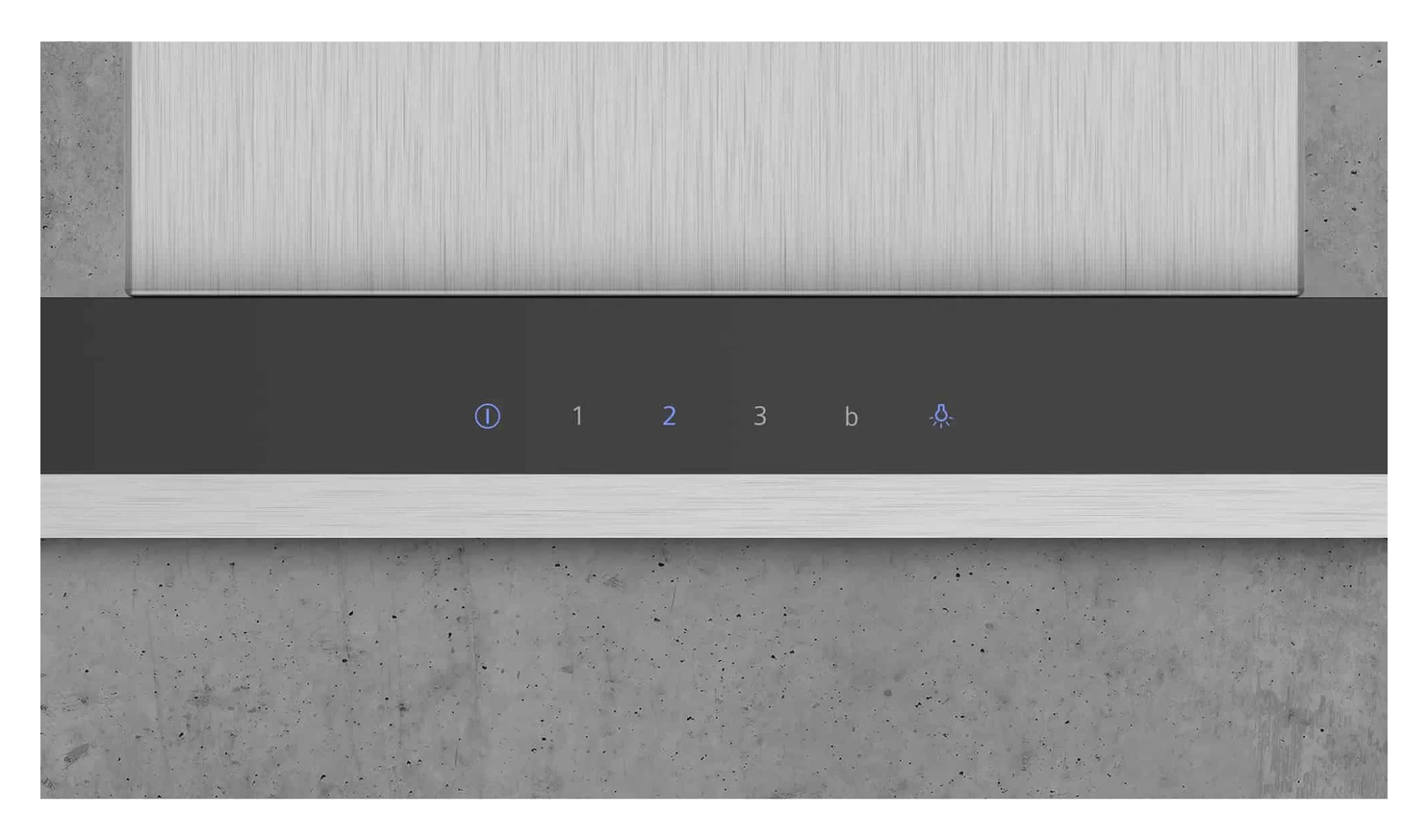

Easy operation – touchControl

Have your kitchen under control. With touchControl, you can easily manage the power level and the LED light of your hood with just the touch of a button. No matter which setting you need, the touchControl function reacts immediately.

Intensive setting with automatic after revert setting

The intensive setting temporarily increases the extraction rate when kitchen vapour is especially intense, with automatic revert after 6 minutes.

Optimal visibility and atmosphere when cooking – LED light

The energy-saving LED lighting provides an optimal visibility, and turns the whole kitchen into a pleasant highlight.

Comfort:

• Suitable for ducted or recirculated operation
• For recirculated extraction or CleanAir recirculation kit (accessory) needed
• TouchControl with Electronic display
• 3 speed + intensive operation
• Twin channel high performance fan motor

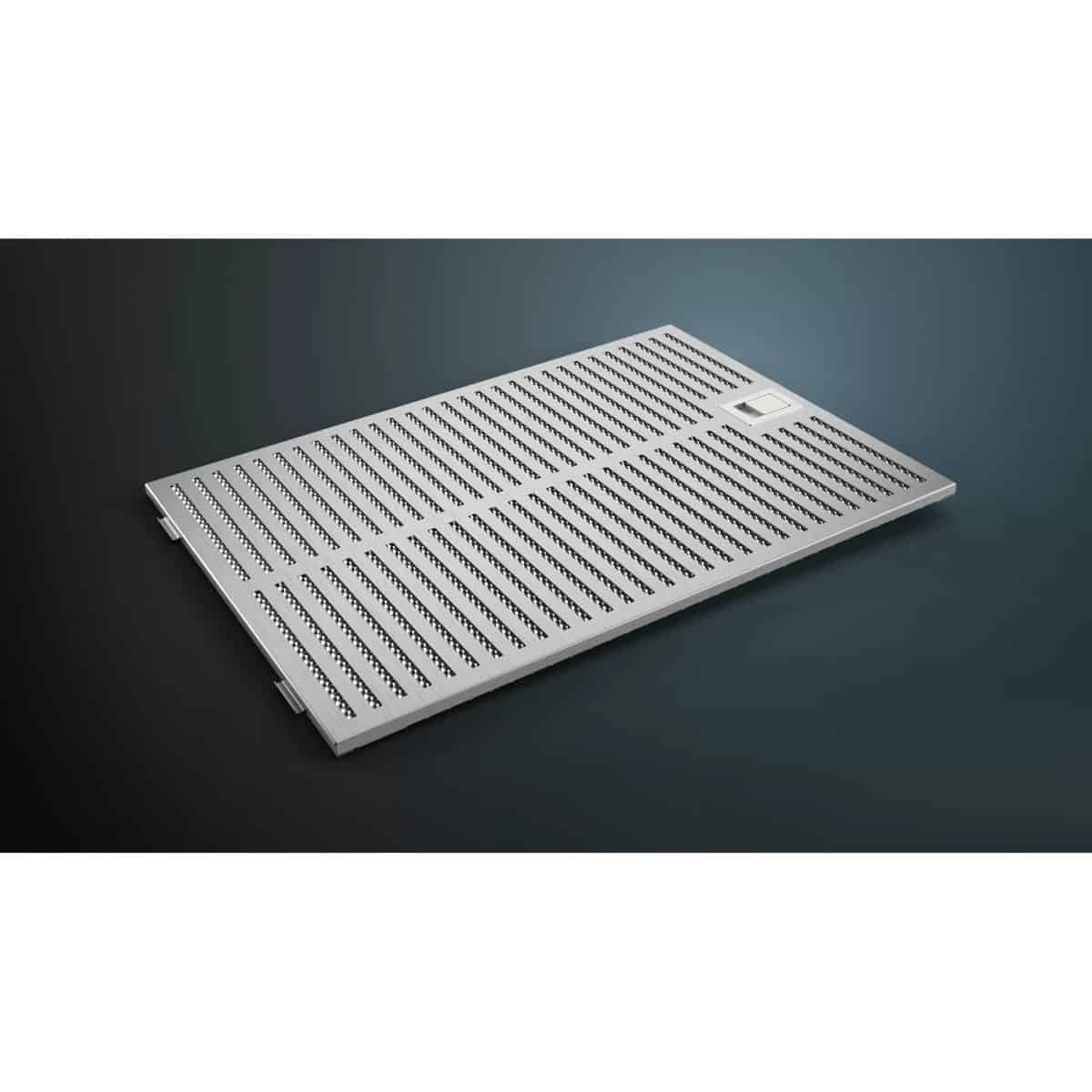

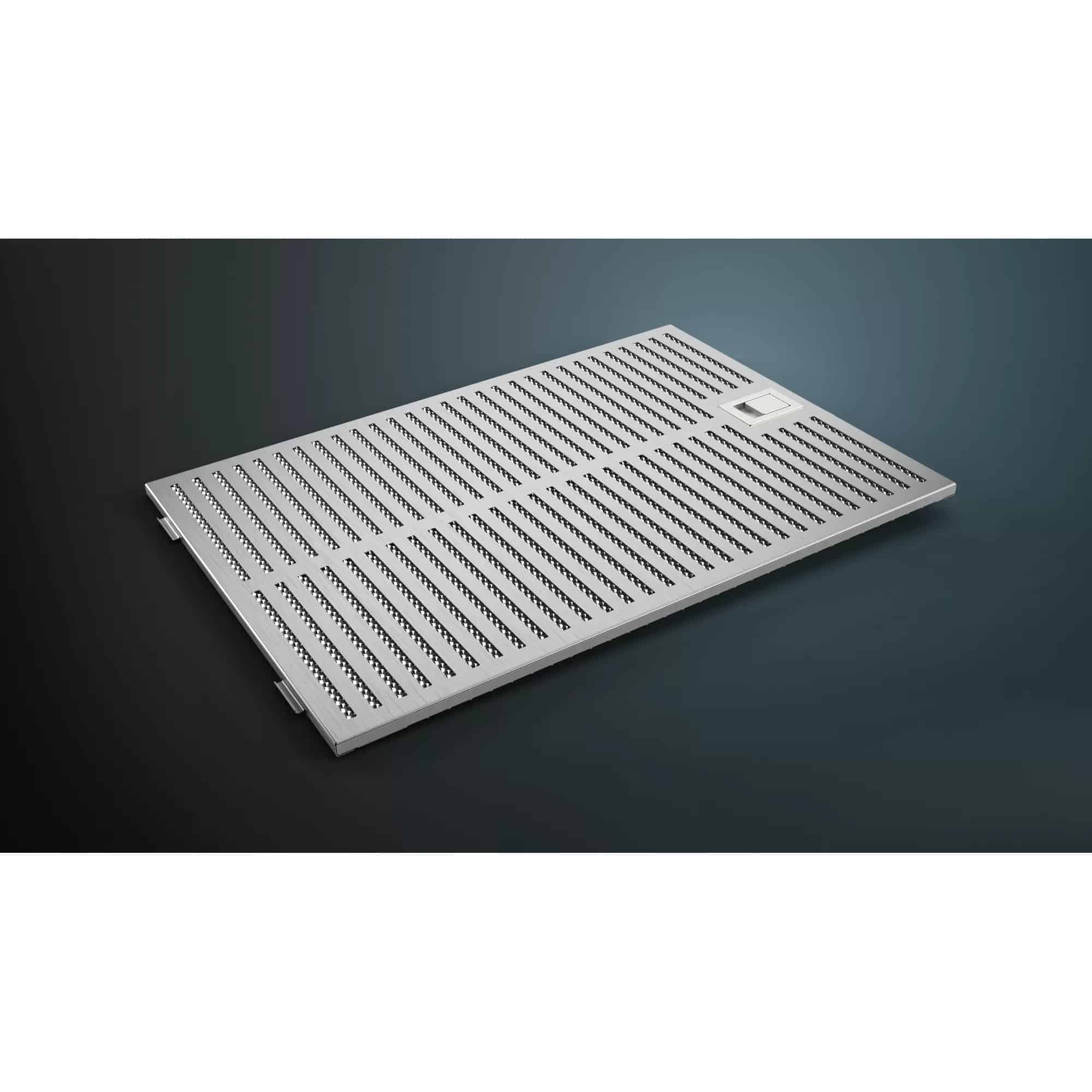

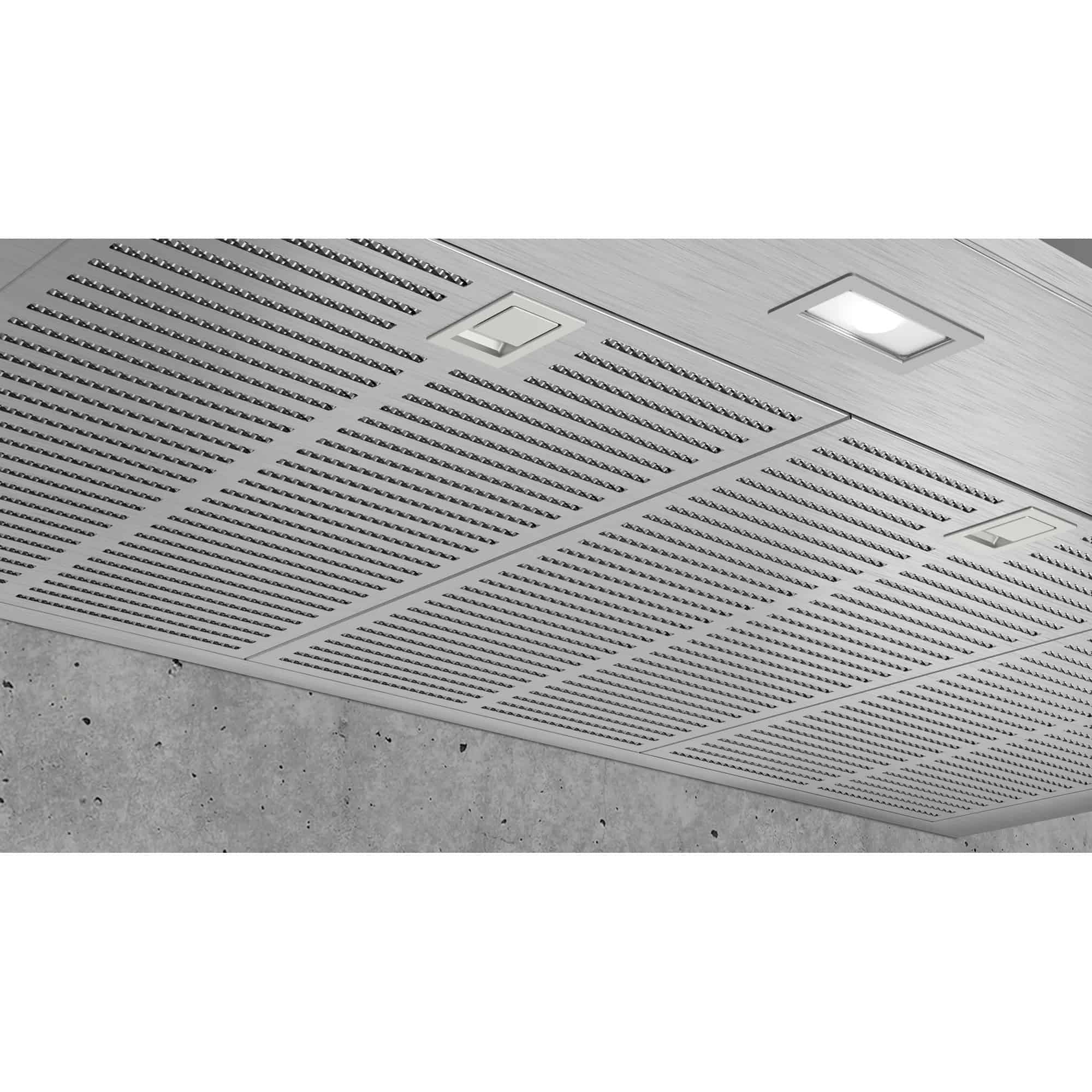

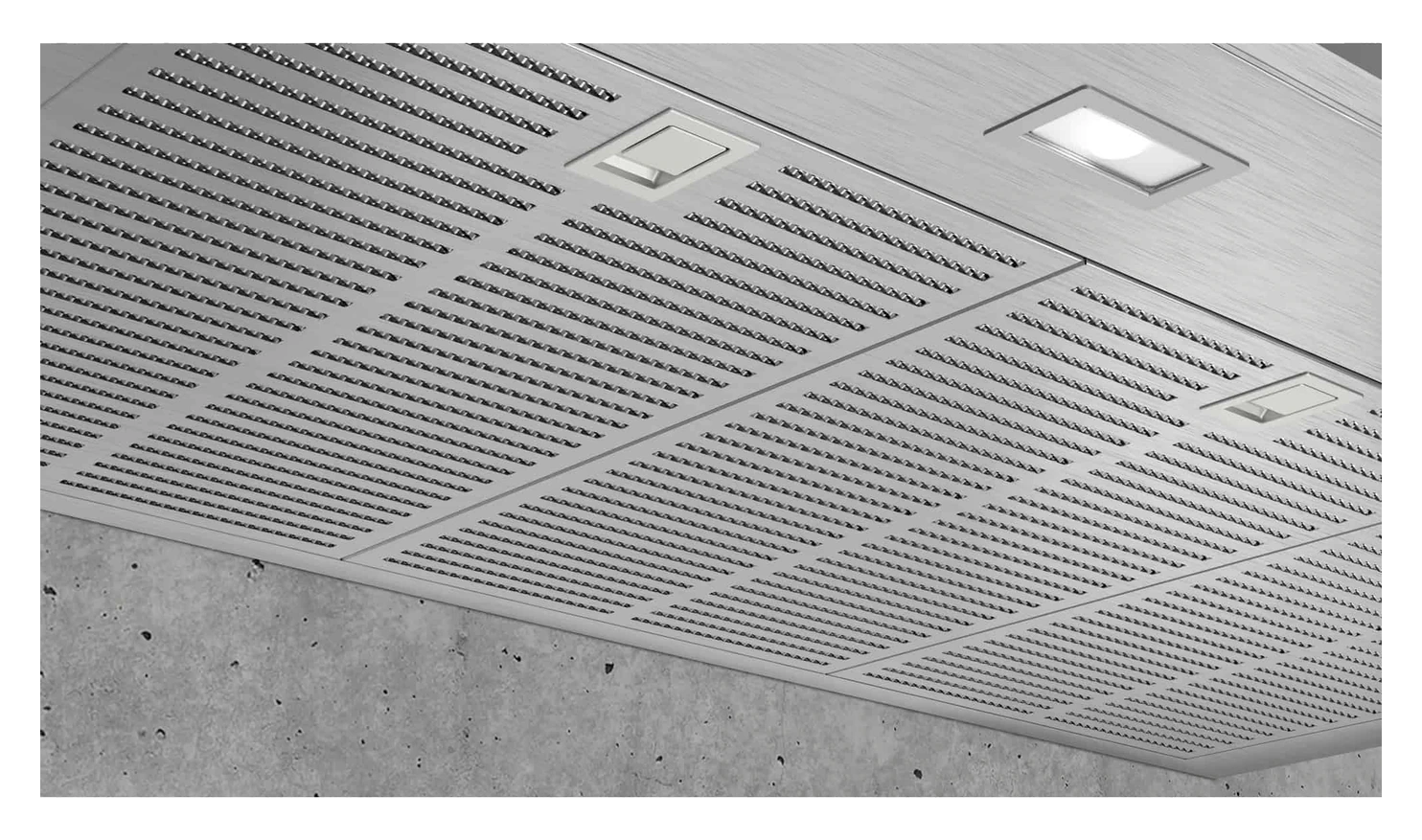

• Metal grease filter, dishwasher safe
• Capacitor energy efficient

Environment and safety:

• Energy Efficiency Class: B*
• Average Energy Consumption: 62.5 kWh/year*
• Blower Efficiency Class: B*
• Lighting Efficiency Class: A*
• Grease Filtering Efficiency Class: B*

Technical Data

• Typology: Wall-mounted
• Length electrical supply cord: 130 cm
• Height of the chimney: 583-912/583-1022 mm
• Height of product, without chimney: 53 mm
• Net weight: 13.6 kg
• Type of control: Electronic
• Maximum output air extraction: 454 m³/h
• Boost position output recirculating: 499 m³/h
• Maximum output recirculating air: 404 m³/h
• Boost position air extraction: 739 m³/h
• Number of lights: 2
• Noise level: 65 dB(A) re 1 pW
• Diameter of air outlet: 120 / 150 mm
• Grease filter material: Washable stainless steel
• Odour filter: No
• Operating Mode: Convertible
• Optional accessories: LZ00XXP00, LZ10DXA00, LZ10DXU00,
• LZ10FXJ00, LZ11DXB14, LZ11DXI14, LZ11DXI16, LZ11FXC56,
• LZ31XXB16, LZ11FXD51, LZ12250, LZ12350, LZ50960, LZ50961
• Type of lamps used: LED
• Grease filter type: Kassette
• Connection Rating: 255 W
• Fuse protection: 10 A
• Voltage: 220-240 V
• Frequency: 50; 60 Hz
• Plug type: GB plug
• Installation typology: Wall-mounted
• Material body: Stainless steel
• Plug type: GB plug
• Dimensions of the product, with chimney (if exists) (in): / x x
• Dimensions of the packed product: 19.29 x 25.59 x 40.55
• Net weight: 30.000 lbs
• Gross weight: 42.000 lbs
• Motor location: Integrated motor in hood chimney
• No-return airflow flap: No
• Length electrical supply cord: 130 cm
• Dimensions of the product, with chimney (if exists): 635-1075 MM x
• 900.0 x 500.0 mm
• Dimensions of the packed product (HxWxD): 490 x 650 x 1030 mm
• Net weight: 13.6 kg
• Gross weight: 19.0 kg
