Siemens Built-In 90 cm Ceramic Electric Hob Black

Space for large roasting pans, extendable roasting zone.

For the optimal heat distribution when cooking with roasters or large roasting pans, you can activate an additional to the standard size cooking zone to make it fit to the larger size of the cookware.

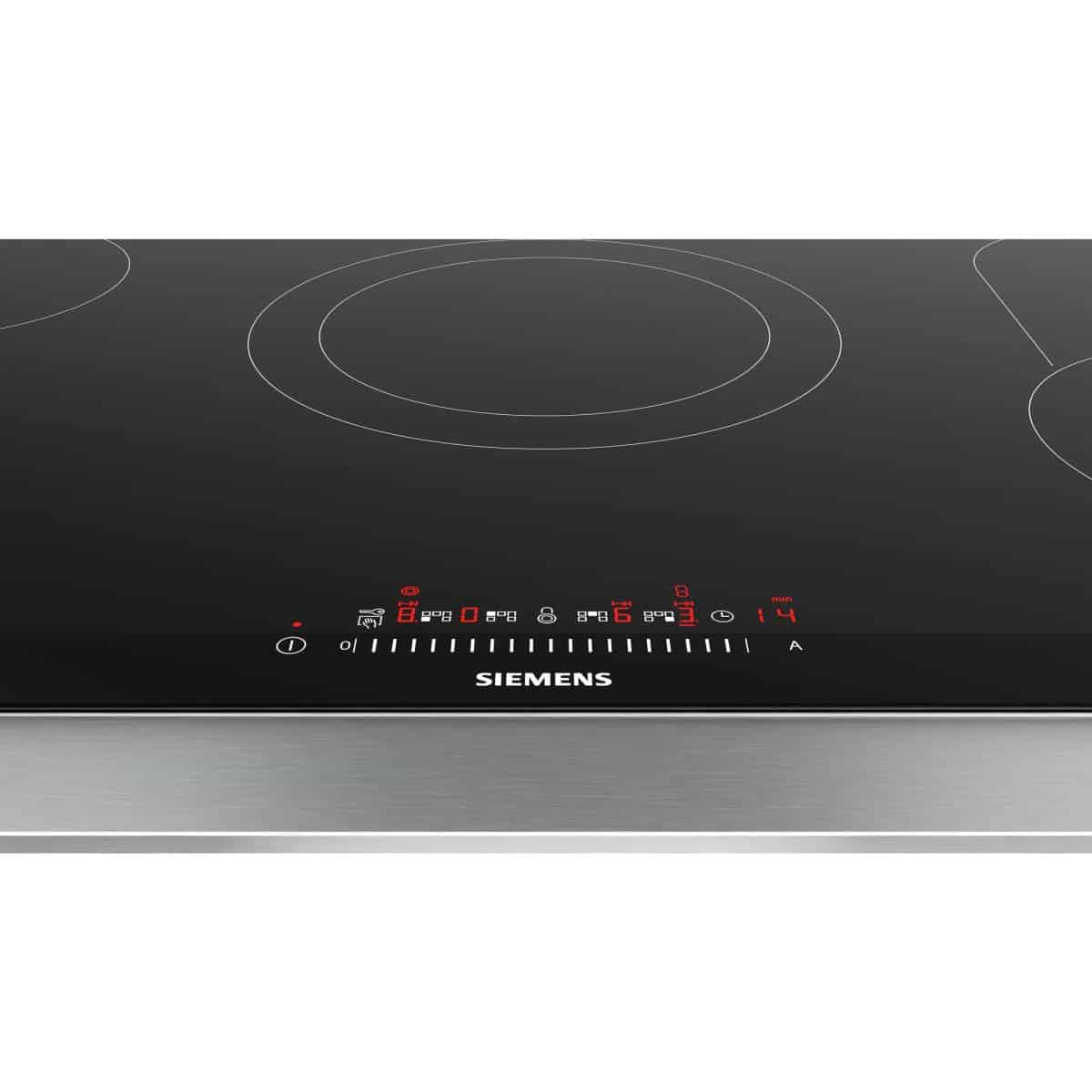

Temperature control without knobs or dials: touchSlider control.

Our innovative touchSlider technology allows you to control the temperature of the cooking zones either by directly tapping the operating scale or sliding your finger along it. Sensor-based heat regulation takes place in half levels up to the maximum setting of 9.

Safely shuts off the cooking zone, Timer with switch-off function.

The timer with switch-off function safely shuts off the cooking zone when the selected cooking time expires.

Hazards are eliminated: the childproof lock.

With the childproof lock button, you can quickly and easily protect each induction hob against unauthorised operation. The childproof lock blocks all the hob’s functions at the touch of a button. Locking is cleared by pressing the button again and holding down for a few seconds.

For more energy efficient cooking, energy consumption display.

For more energy efficient cooking, energy consumption display.

Timer

Greater cooking convenience thanks to the timer function.

• Space for large roasting pans, extendable roasting zone.
• TouchSlider control allows to control the temperature by entering it directly or by moving the slider with a single finger.
• The timer with switch-off function safely shuts off the cooking zone when the selected cooking time expires.
• The child safety lock safely prevents unintentional switch-on.
• For more energy efficient cooking, energy consumption display.

Features:

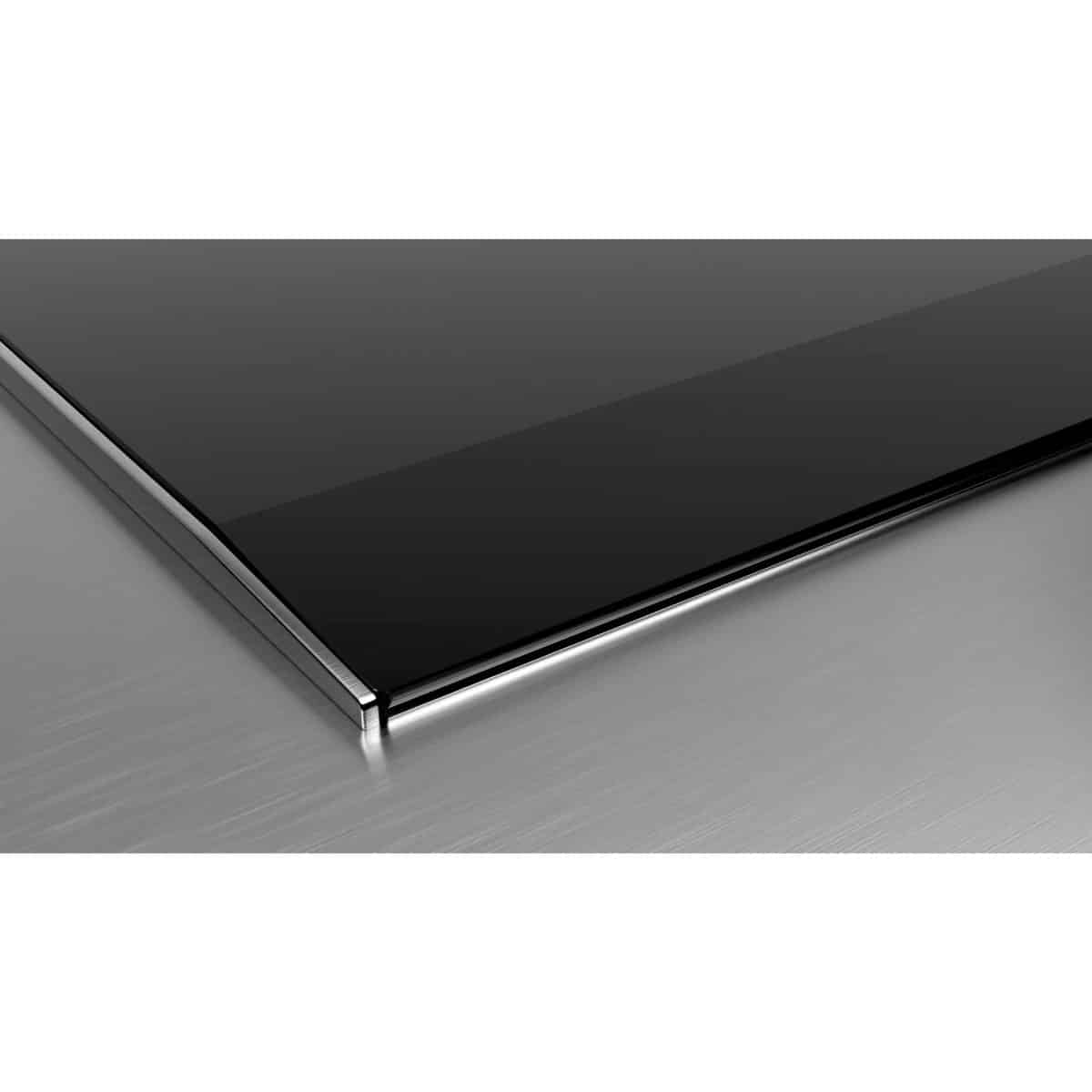

• Facetted design (with front facette and side profiles)
• HighSpeed ceramic glass

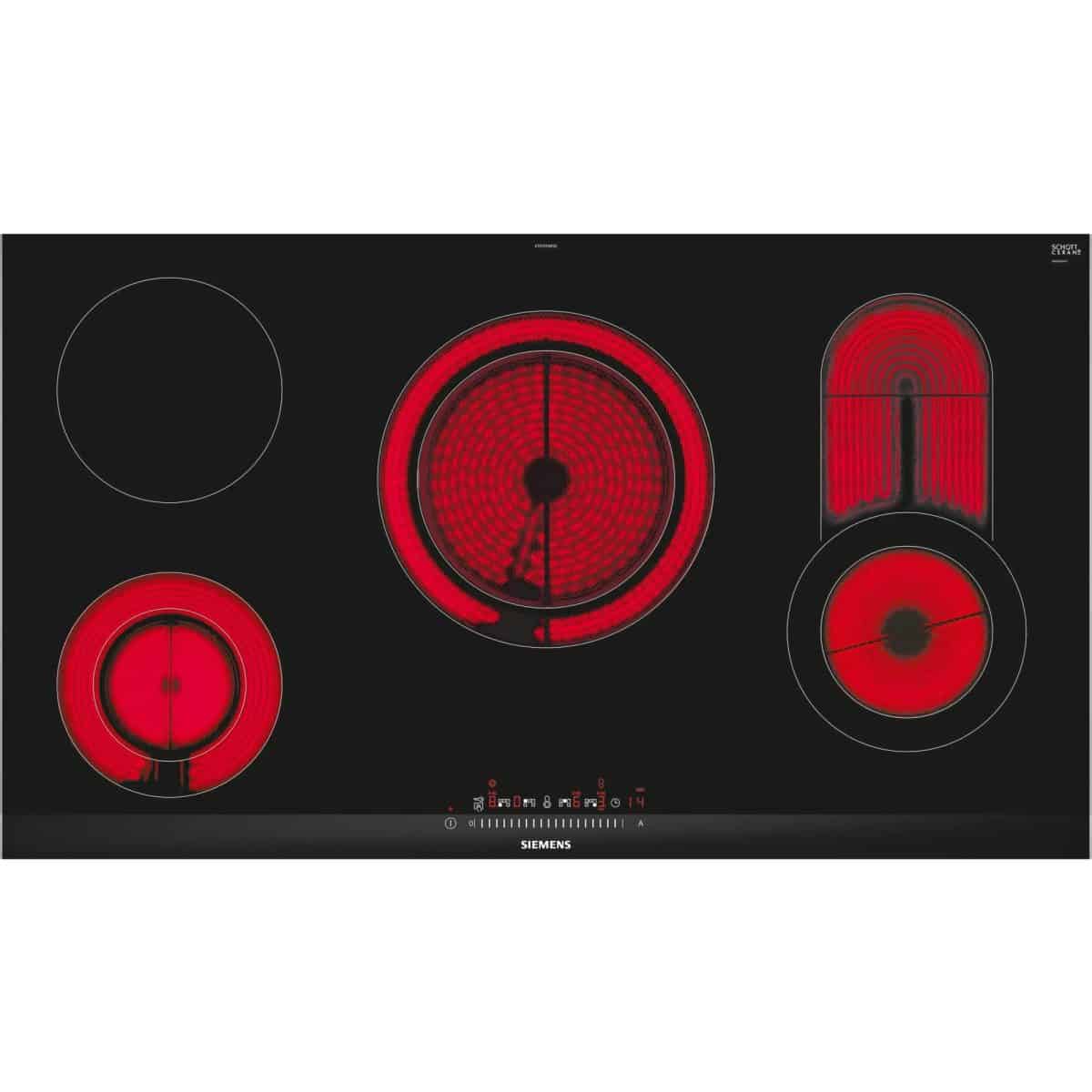

• 4 HighSpeed cooking zones, including:
• 2 dual zones
• 1 Ring zone double + roaster
• Direct Select
• Electronic regulation 17 power levels
• Electronic display
• Timer with switch-off function for all zones
• countDown-fuction
• Wipe protection function
• Main switch
• Power on indicator light
• Residual heat indicator: digital 2-step
• Childproof lock
• Safety switch-off
• Individual tunable energy consumption display
• Quick start function
• Min. worktop thickness: 16 mm

Specifications:

• Cooktop type: Radiant cooktop
• Operating mode: Self-sufficient electro hobs
• Width: 90 cm
• Total number of positions that can be used at the same time: 4
• Dimensions of the heating elements: 1 x 20, 0 cm ?, 1 x 27, 5 cm ?, 2 x 18, 0 cm ?
• Power of the heating elements: 1 x 2.1 KW, 1 x 2.7 KW, 2 x 2.0 KW
• Basic surface material: Ceramic
• Frame type: Design frame
• Colour: Black
• Energy consumption of hob: 189.1 Wh/kg
• Dimensions: 45 x 912 x 520 mm
• Minimum height for installation: 500 mm
• Maximum height for installation: 500 mm
• Minimum width for installation: 880 mm
• Maximum width for installation: 880 mm
• Depth for installation: 45 mm
• Appliance height above the worktop: 6.0 mm
• Connection rating: 7, 000 W
• Voltage: 220 to 240 V
• Plug type: no plug
• Included user manuals: [AR, EN]
• Type of control: TouchControl MultiTouch
• hotplate control settings: 17 power levels
• Cooking zone flexibility: Extended cooking zone, Two-ring cooking zone
• powerBoost: No
• activeLight Plus: No
• activeLight: No
• fryingSensor Plus: No
• Infrared cooking sensor: No
• cookingSensor Plus ready (sensor sold separately): No
• Powermove: No
• flexMotion: No
• quickStart: No
• Keep warm function: No
• Timer: Yes
• Home Connect: No
• cookConnect system: No
