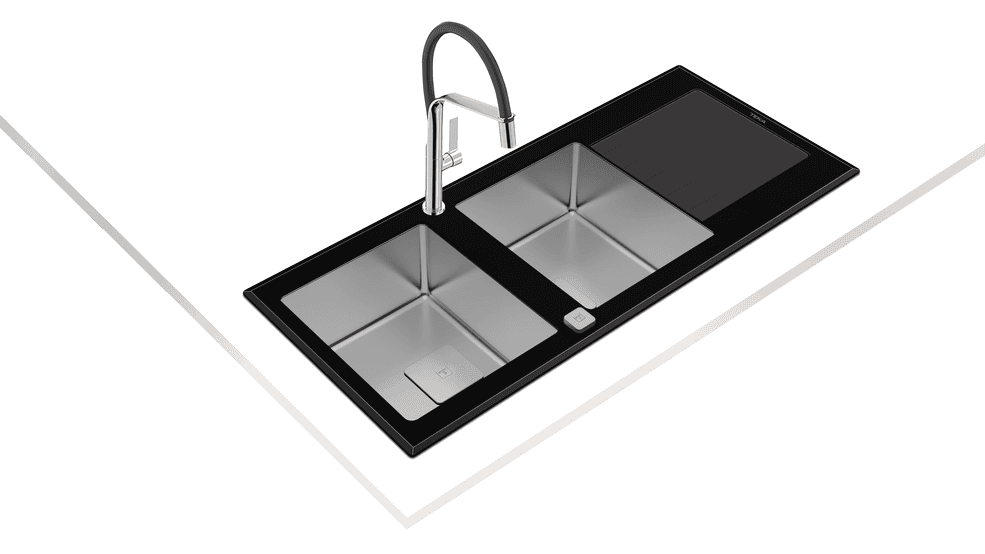

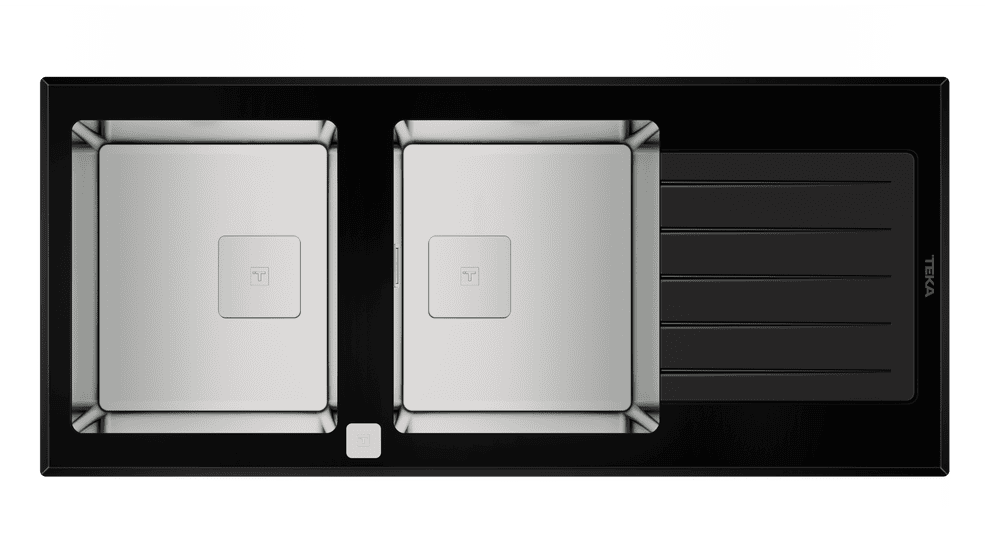

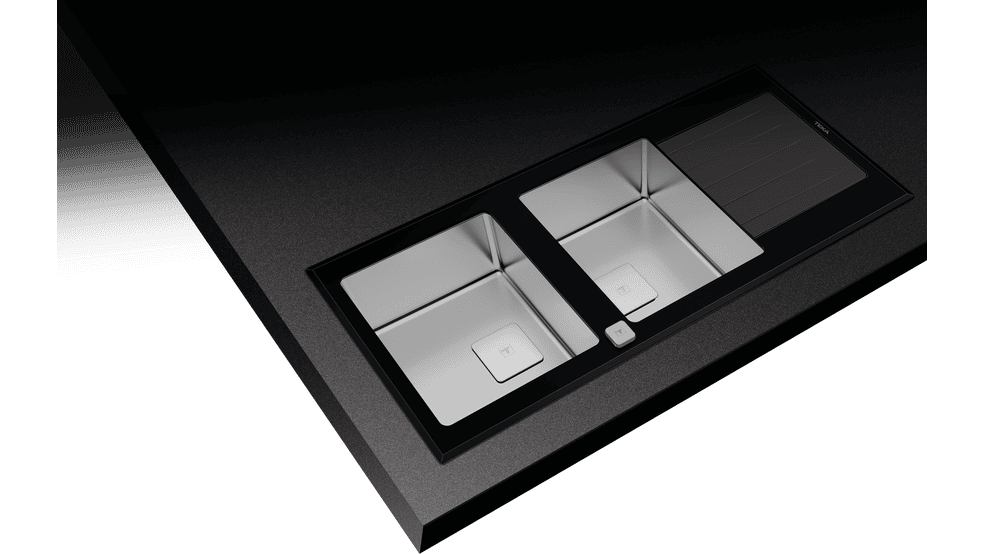

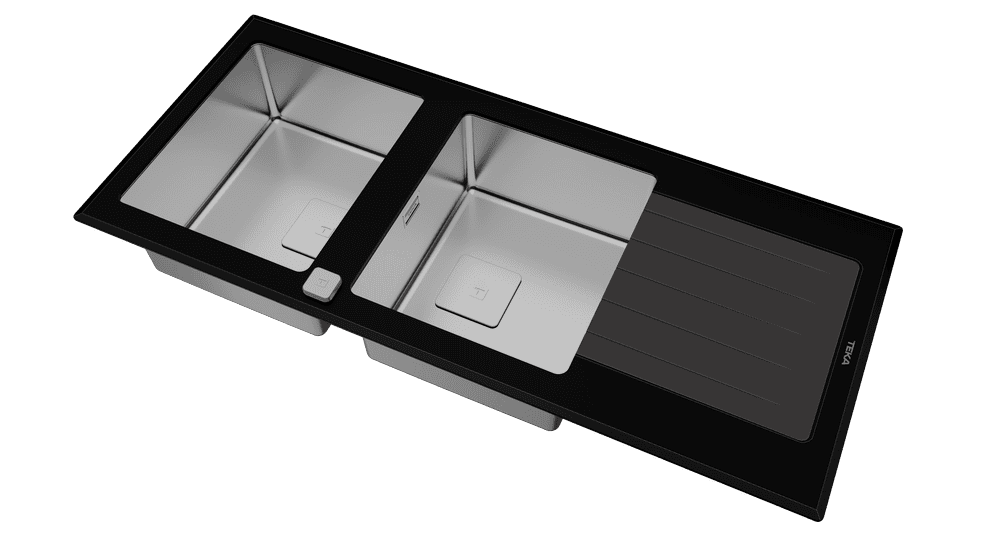

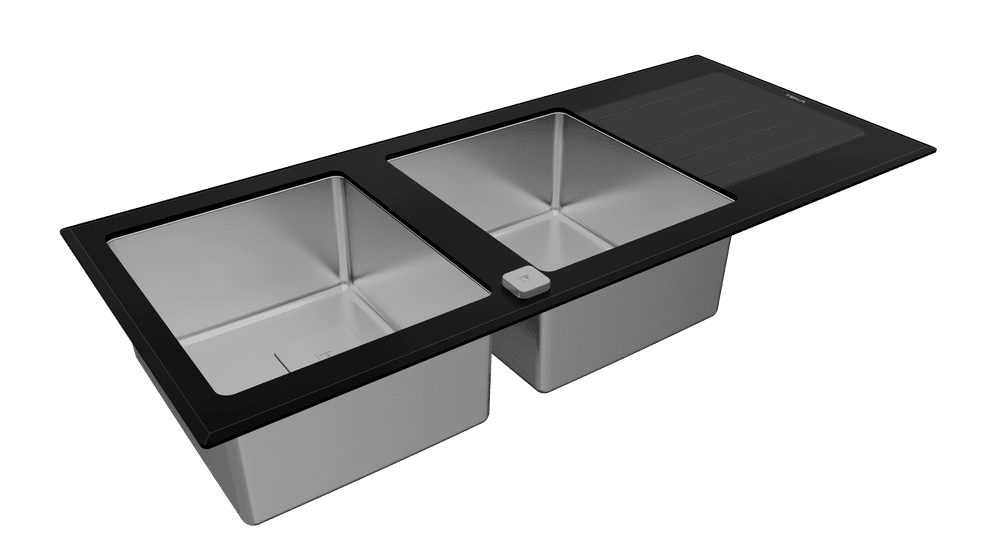

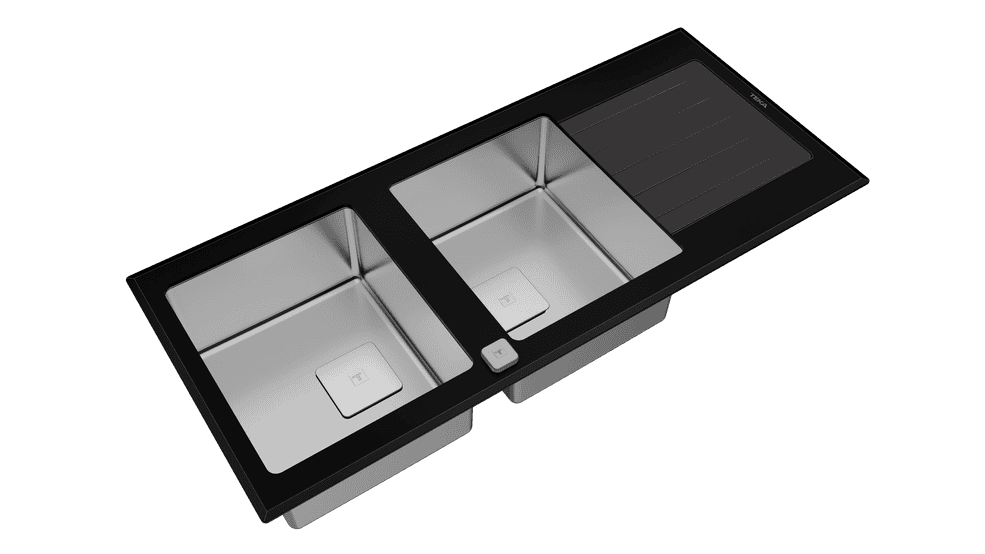

Teka MAESTRO Diamond RS15 2B 1D AUTO Inset PureLine Glass sink with two bowls and one drainer

Singular Features

• PureLine glass and stainless steel sink
• Two bowls and one drainer
• Safety tempered glass with bevelled edges, impact
• resistance, high temperatures and thermal shocks
• Inset installation, Reversible drainer
• Easy clean radius R15 corners ,Decorative SQ cover
• 3½” SQ automatic basket wastes with overflow and siphon
• SilentSmart, 50% less noise
• 80 cm base unit
• Thickness: 8 mm top / 1.0 mm bowl
• Packaging: Individual carton box

Technical Details

General measures

• Product width (mm): 510
• Product depth (mm): 200
• Product length (mm): 1160
• Net weight (Kg): 4,6

 View technical drawing

Main Bowl

• Main Bowl Length (mm): 340
• Main Bowl Width (mm): 400
• Main Bowl Depth (mm): 200

Other features

• Material: Stainless Steel and Glass
• Type of installation: Inset
• Number of tap holes: 2
• Valve hole type: 3½” SQUARED
• Overflow hole: Rectangular
• Sink Bowl / Top thickness (mm): 1,0 / 8,0

Others

• Base unit (cm): 80

Secondary Bowl

• Secondary Bowl Length (mm): 340
• Secondary Bowl Width (mm): 400
• Secondary Bowl Depth (mm): 200

Sink Lay out

• Number of bowls: 2B 1D
• Number of drainers: 2B 1D
• Drainer position: Reversible

Accessories

• Soundproof: Yes
• SilentSmart: Yes
• Siphon: Yes
