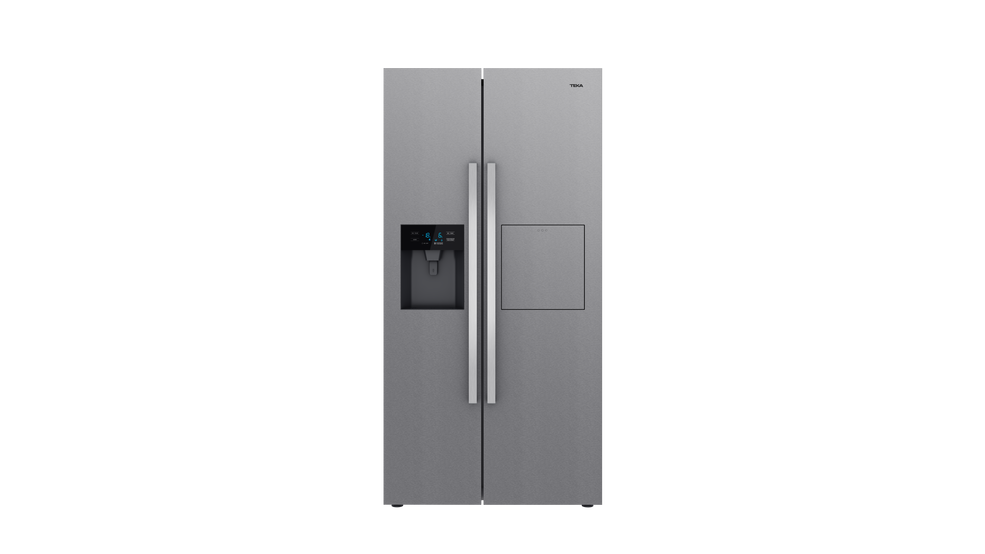

TEKA MAESTRO RLF 74925 A++ No Frost Side by Side Refrigerator in 179cm

Singular Features

• Side by Side refrigerator
• Full No Frost
• Electronic display with freezer and refrigerator
• temperature control and indicator
• Bar on door system
• Eco function
• On holidays function
• Fast Freeze / Quick Cool function
• 2 FreshBox drawers
• 7 safety glass shelves with adjustable height
• LED ilumination
• Safety lock for children
• 8 door balconies
• External metal handle
• Back wheels to move the appliance easily
• Adjustable feet (front/rear)
• Energy class: A++
• Climate class: N/T
• Total gross capacity : 574 litres
• Net capacity ( fridge ): 334 litres
• Net capacity ( freezer ): 156 litres

Technical Details

General measures

• Product height (mm): 1788
• Product width (mm): 895
• Product depth (mm): 745
• Net weight (Kg): 108

 View technical drawing

Fitting measures

• Built-in Width (mm): 0
• Built-in Depth (mm): 0
• Built-in height (mm): 0

Product sheet

• Cooling system: FULL NF
• No Frost In Refrigerator Compartment: Yes
• No Frost in chiller: Yes
• No Frost in freezer compartment: Yes
• Total gross capacity (litres): 574
• Refrigerator compartment capacity (litres): 334
• Freezer compartment capacity (litres): 156
• Freezer classification: 4
• Freezing capacity: 7
• Temperature Rise Time (h): 14
• Climate class: N/T
• Noise level (dB): 43

Power supply

• Frequency (Hz): 50
• Power rate (V): 220-240
• Power rate (W): 188
• Defrost element power (W): 240
• Energy consumption (kw/day): 0,882
• Cable Connection Length (cm): 175

Particular characterisitics

• Type of installation: Free standing
• Automatic defrosting in the refrigeration compartment: Yes
• Automatic defrosting in the freezer compartment: Yes
• Electronic adjustable thermostat: Yes
• Display on door: Yes
• Fingerprint proof door: Yes
• Antibacterial treatment: NO
• Freezing set button: Yes
• Cooling set button: Yes
• Lock function: Yes
• Fast freezing: Yes
• Fast Cooling Function: Yes
• On Holidays Function: Yes
• Inner light: Yes
• Type of inner light: LED
• External handle: Yes

Control indicator lights

• Operating light fridge: Yes
• Operating light freezer: Yes
• Freezer compartment temperature display: Yes
• Fast freezing indicator: Yes
• Acoustic alarm: Yes

Equipment

• Chromed bottle rack: NO
• Multipurpose compartment: NO
• Automatic water dispenser: Yes
• Automatic ice maker: Yes
• Ice off: Yes
• Ice cubes tray: 2
• Bottle rack type: NO
• Adjustable feet front: Yes
• Roller (rear): Yes
• Refrigerator adjustable shelves: Yes
• Vegetable drawers: 2
• Temperature and humidity regulation in drawers: FRESH BOX
