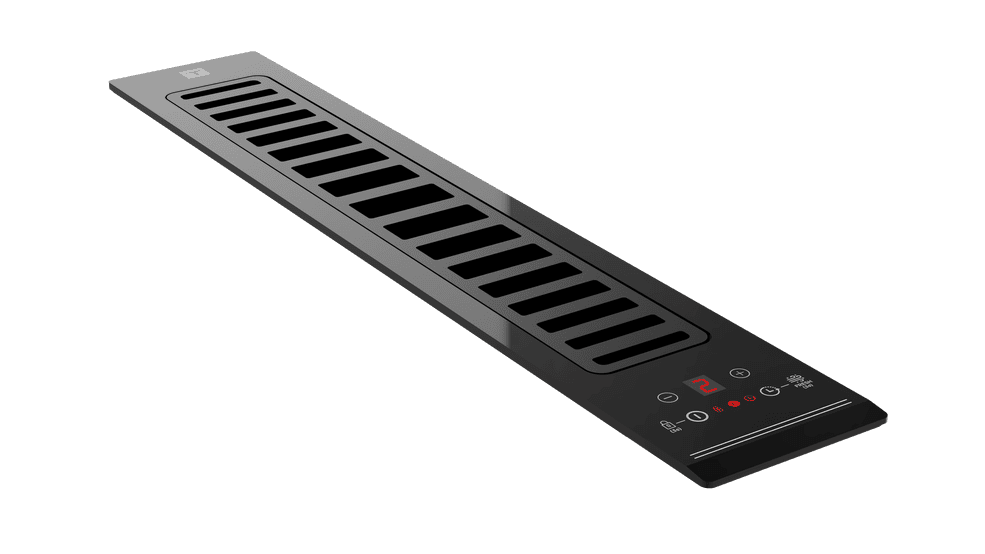

TEKA MAESTRO FIH 16760 VarioPro Series Modular hood in 51 cm with Touch Control

VarioPro Series

The VarioPro Series allows you to choose a setting according to your needs. The collection has different elements, which can be combined and used to create a unique kitchen. You can choose between induction hobs, gas, integrated extractor hood, Teppanyaki or Wok, so you don’t have to give up any cooking type you like.

VarioPro modular hood

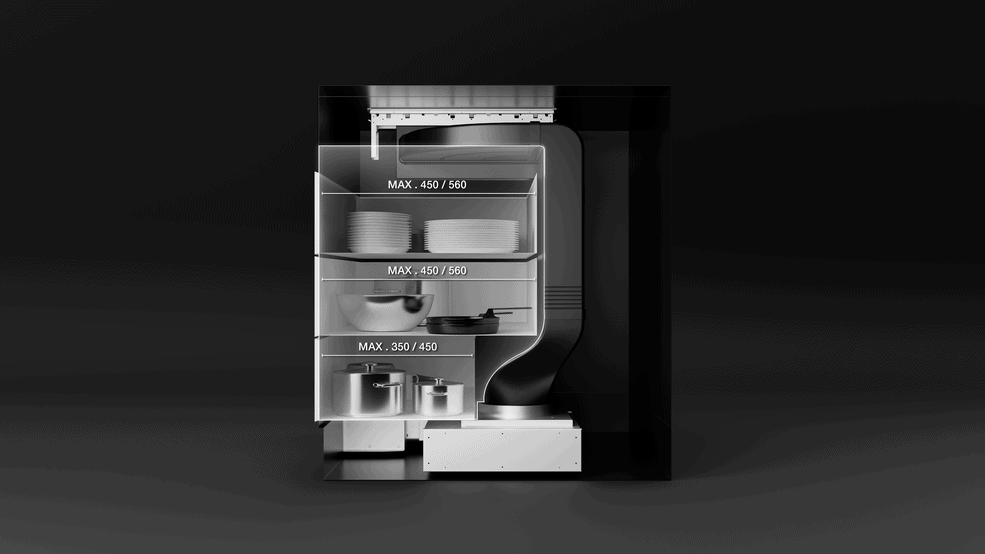

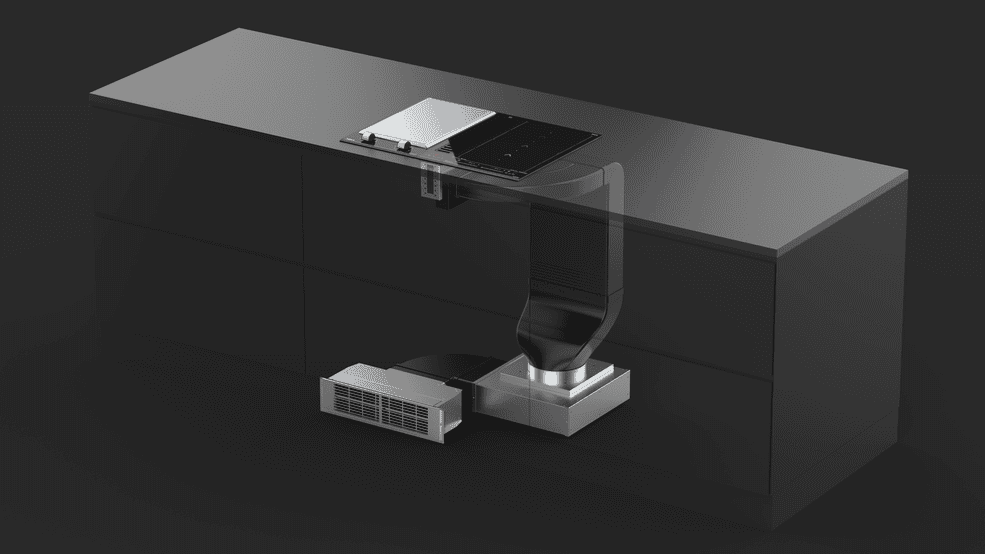

Design and power go hand in hand. The hood is just where you need it, next to the hob, providing a quick and efficient extraction. The brushless motor, located at the base of the cabinet, minimizes noise, so you can enjoy what matters: cooking.

Designed to save

Complying with the energy criteria for Passive House homes, our extractor fans allow recirculation installation, avoiding the need for air vents to the outside and favouring insulation. This makes it possible to reduce the energy required for air conditioning in your home (In comparison to class D models).

Step-by-step installation

earn how to install the modular VarioPro series by watching this video which will guide you through the installation process of all the elements.

Singular Features

• Urban Colors Edition
• VarioPro Modular hood

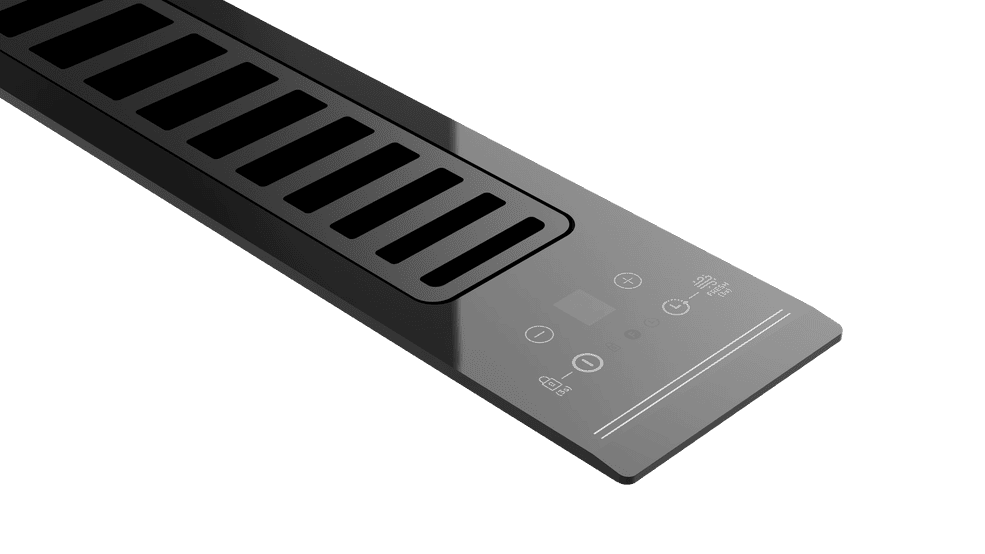

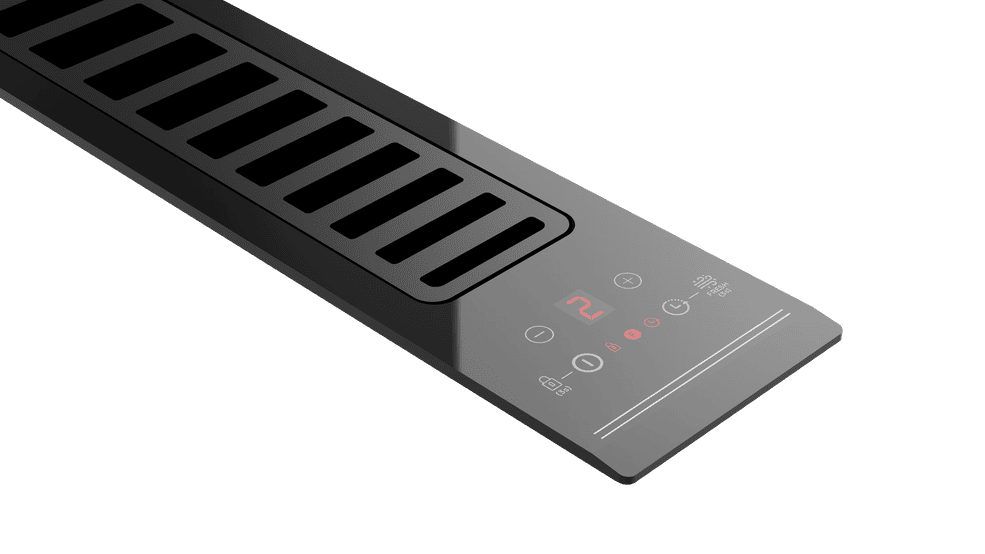

• Touch control
• FreshAir function
• Brushless EcoPower Motor
• 3 speeds + 1 intensive
• Free Outlet exhaust capacity (m3/h): 630
• Intensive speed exhaust capacity (m3/h): 600
• Max speed exhaust capacity (m3/h): 540
• Min speed exhaust capacity (m3/h): 415
• Intensive speed sound level (dBA): 70
• Max speed sound level (dBA): 67
• Min speed sound level (dBA): 62
• 1 mesh washable filter
• Stop delay timer
• Filter saturation indicator
• Operating pilot light
• Optional recirculation kit with tube cover installation: RFH 36100 F0A
• Optional Regenerative filter : R1RFB

Technical Details

General measures

• Product height (mm): 186
• Product width (mm): 110
• Product depth (mm): 510
• Net weight (Kg): 15

 View technical drawing

Particular characterisitics

• Certificates: CB / IMQ
• Ø Outlet (mm): 220×90
• Plug type: EU
• Cable Connection Length (cm): 150
• Power rate (V): 220240
• Frequency (Hz): 50/60
• Total hood power (W): 145
• Number of motors: 1
• Motor power (W): 145

Accessories

• Regenerative charcoal filter: R1RFB
• Regenerative recirculation kit (opt) – w/o tube cover: RFH 36100 F0A

Models

• Number of filters: 1
• Filter description: mesh washable filter
• Opening system: manual
• Control panel: Touch control
• Stop delay timer: Yes
• Filter saturation indicator: Yes
• Number of speeds: 3+1
• Fresh air function: Yes

Downloads

 Installation instructions

 Manuals

 Full product card

 Technical drawing

 Family catalogue

 High resolution images

 Energy label

 Leaflet

 3D

 EU Product Information Sheet
