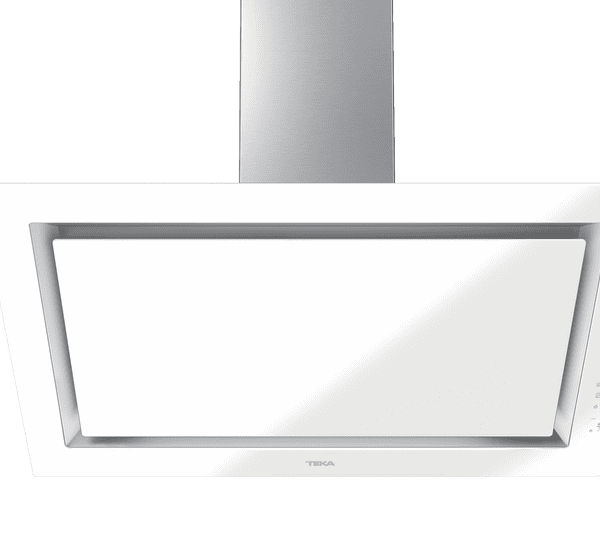

TEKA MAESTRO DLV 98660 WH Vertical decorative hood with Fresh air function in 90cm

Singular Features

• Urban Colors Edition
• Vertical decorative hood
• Rim extraction system
• Touch control display
• FreshAir function
• Full glass design
• 3 speeds + intensive
• Stop delay timer
• LED light bar
• Saturation filter indicator
• EcoPower motor
• Exhauts capacity: min.290 m3/h – max.696 m3/h
• Sound level: min.51 dB – max.67 dB
• Recirculation function with or without tube cover
• Optional regenerative charcoal filters
• Installation also possible without tube cover

Technical Details

General measures

• Product height (mm): 1001-1331
• Product width (mm): 900
• Product depth (mm): 450
• Net weight (Kg): 20,27

 View technical drawing

Particular characterisitics

• Ø Outlet (mm): 150
• Removable oil collector: Yes
• Type of inner light: LED BAR
• Inside light Consumption (W): 7,5
• Plug type: Schuko plug
• Cable Connection Length (cm): 100
• Power rate (V): 220240
• Frequency (Hz): 50/60
• Total hood power (W): 272,5
• Number of motors: 1
• Motor power (W): 265

Accessories

• Anti Return valve: Yes
• Outlet reduction: Yes
• Optional Charcoal Filter: C1RTK
• Regenerative charcoal filter: R1RTK
• Conventional recirculation kit (opt) – w/tube cover: CFH 15200 L3C
• Regenerative recirculation kit (opt) – w/tube cover: RFH 15200 L3C
• Conventional recirculation kit (opt) – w/o tube cover: CFH 15200 O2C
• Regenerative recirculation kit (opt) – w/o tube cover: RFH 15200 O2C

Models

• Number of filters: 2
• Filter description: Aluminum filters
• Opening system: Piston
• Control panel: Touch control
• Stop delay timer: Yes
• Filter saturation indicator: Yes
• Time clock: Yes
• Number of speeds: 3 + 1
• Fresh air function: Yes

Downloads

 Manuals

 Full product card

 Technical drawing

 Family catalogue

 High resolution images

 Energy label

 Leaflet

 3D

 EU Product Information Sheet
