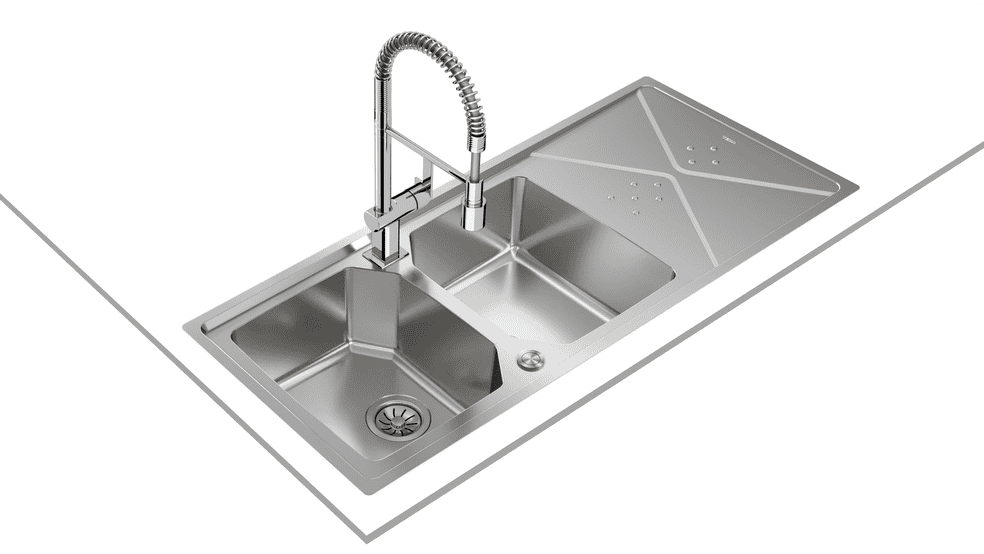

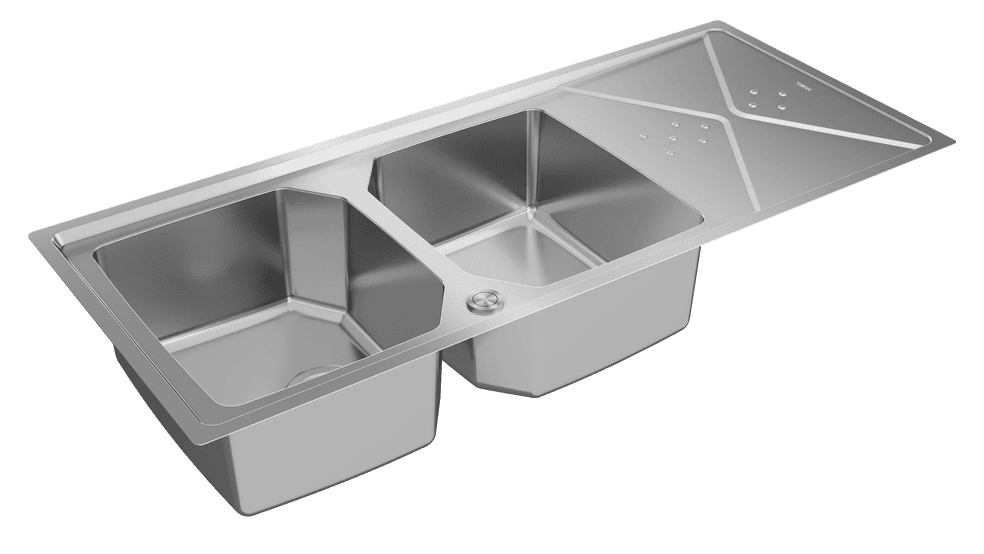

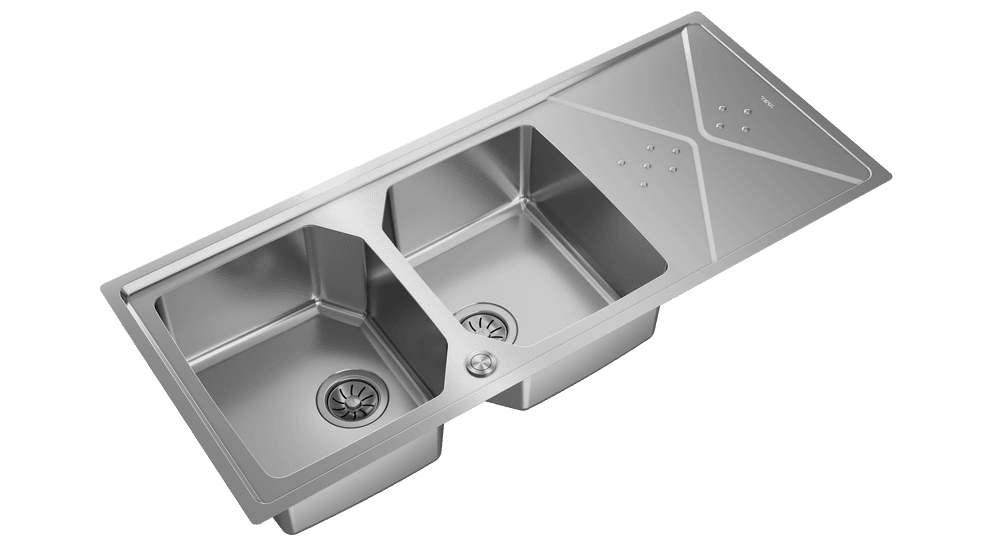

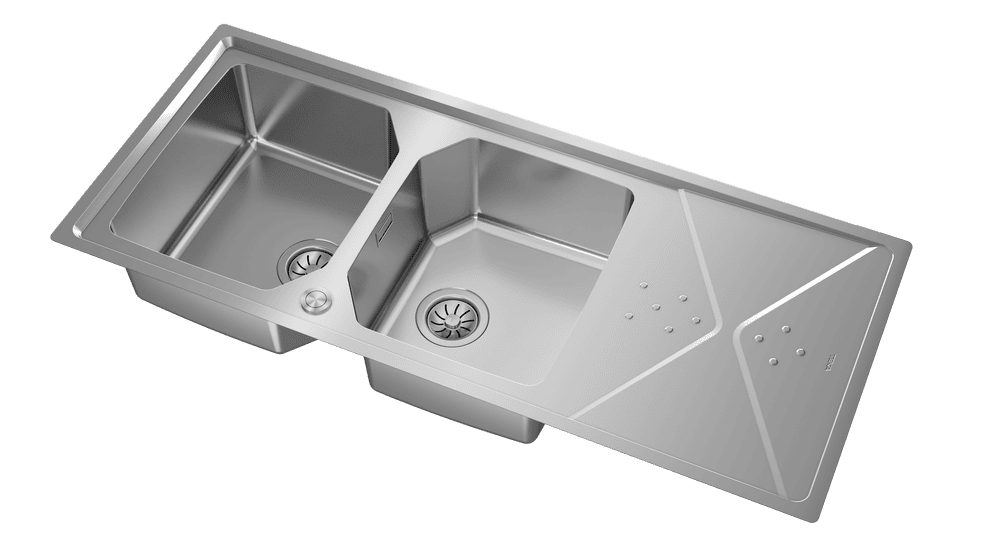

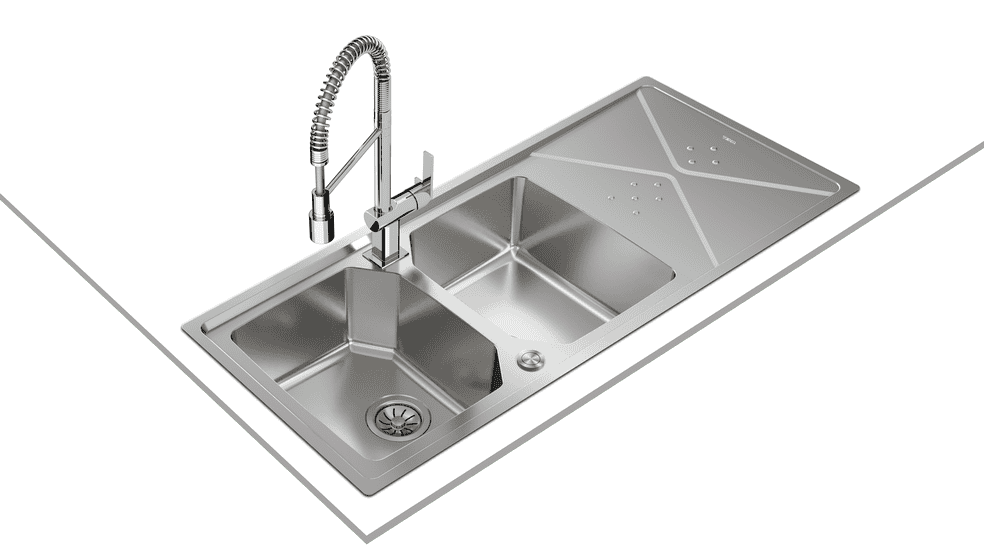

Teka MAESTRO Brooklyn 80 M-XP 2B 1D

Singular Features

• Brooklyn Series
• Stainless steel sink, Polished finish
• Two bowls and one drainer, reversible
• 2-in-1 installation possibilities: top or flush
• V-control 3½” automatic waste basket with siphon

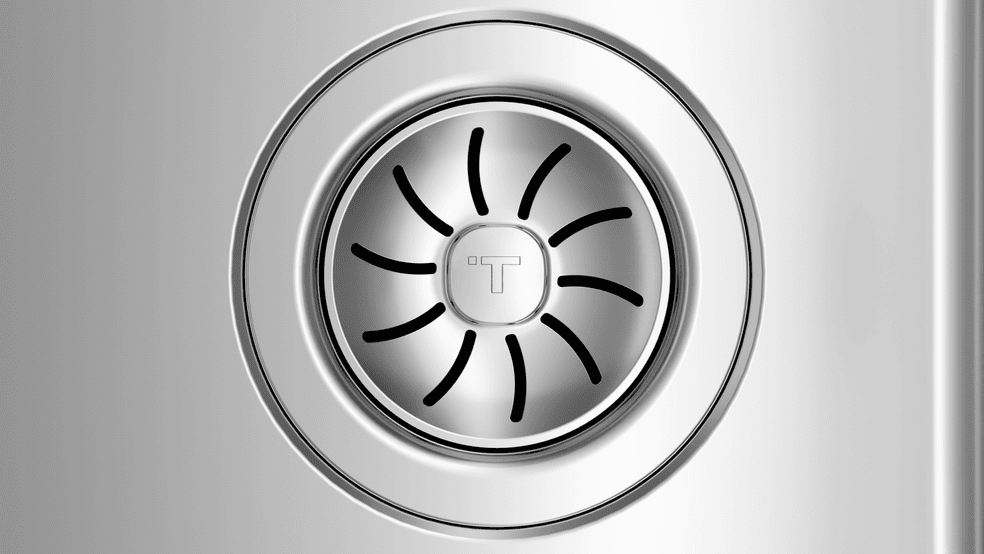

• New HelixPRO waste basket
• SilentSmart, 50% less noise
• 210 mm deep bowl
• 80 cm base unit

Technical Details

General measures

• Product width (mm): 504
• Product length (mm): 1164
• Net weight (Kg): 8,2

 View technical drawing

Main Bowl

• Main Bowl Length (mm): 340
• Main Bowl Width (mm): 400
• Main Bowl Depth (mm): 210

Other features

• Material: Stainless Steel
• Type of installation: Top,Flush
• Number of tap holes: 2
• Valve hole type: 3½”
• Overflow hole: Rectangular
• Sink Bowl / Top thickness (mm): 1,0 / 1,0

Others

• Base unit (cm): 80

Secondary Bowl

• Secondary Bowl Length (mm): 340
• Secondary Bowl Width (mm): 400
• Secondary Bowl Depth (mm): 210

Sink Lay out

• Number of bowls: 2B 1D
• Number of drainers: 2B 1D
• Drainer position: Reversible

Accessories

• Soundproof: Yes
• SilentSmart: Yes
• Installation clips: Yes
• Siphon: Yes

Download

Full product card

 Technical drawing

 High resolution images

 Lifetime warranty conditions

 Leaflet
