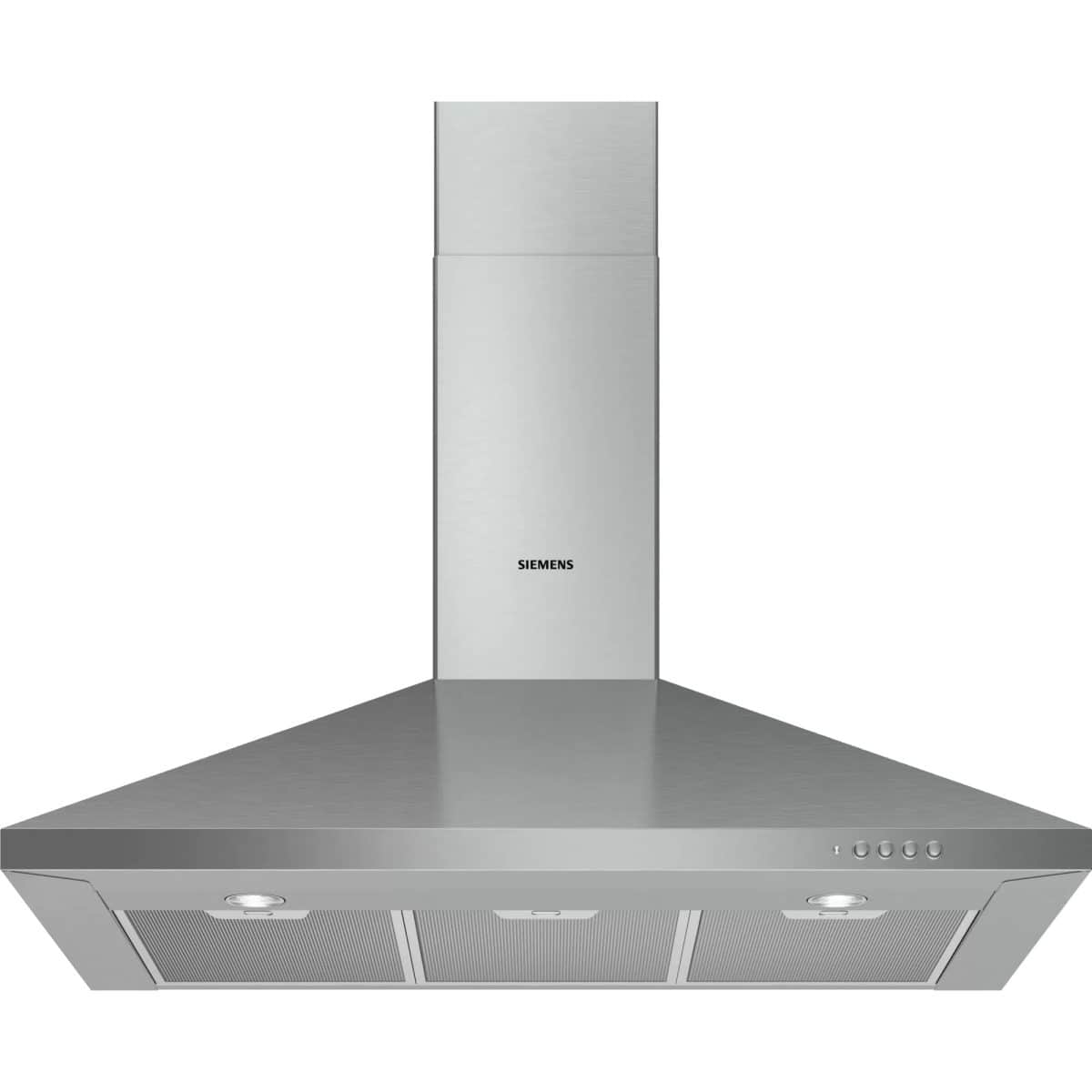

Siemens Wall-mounted Cook Hood Stainless Steel 90cm

The wall-mounted chimney hood: mount it on the wall, giving you complete freedom in your kitchen planning.

extraction rate

The 380 m3/h extraction rate supplies clean air when cooking.

Comfort:

• Suitable for ducted or re-circulated extraction: 3 speeds

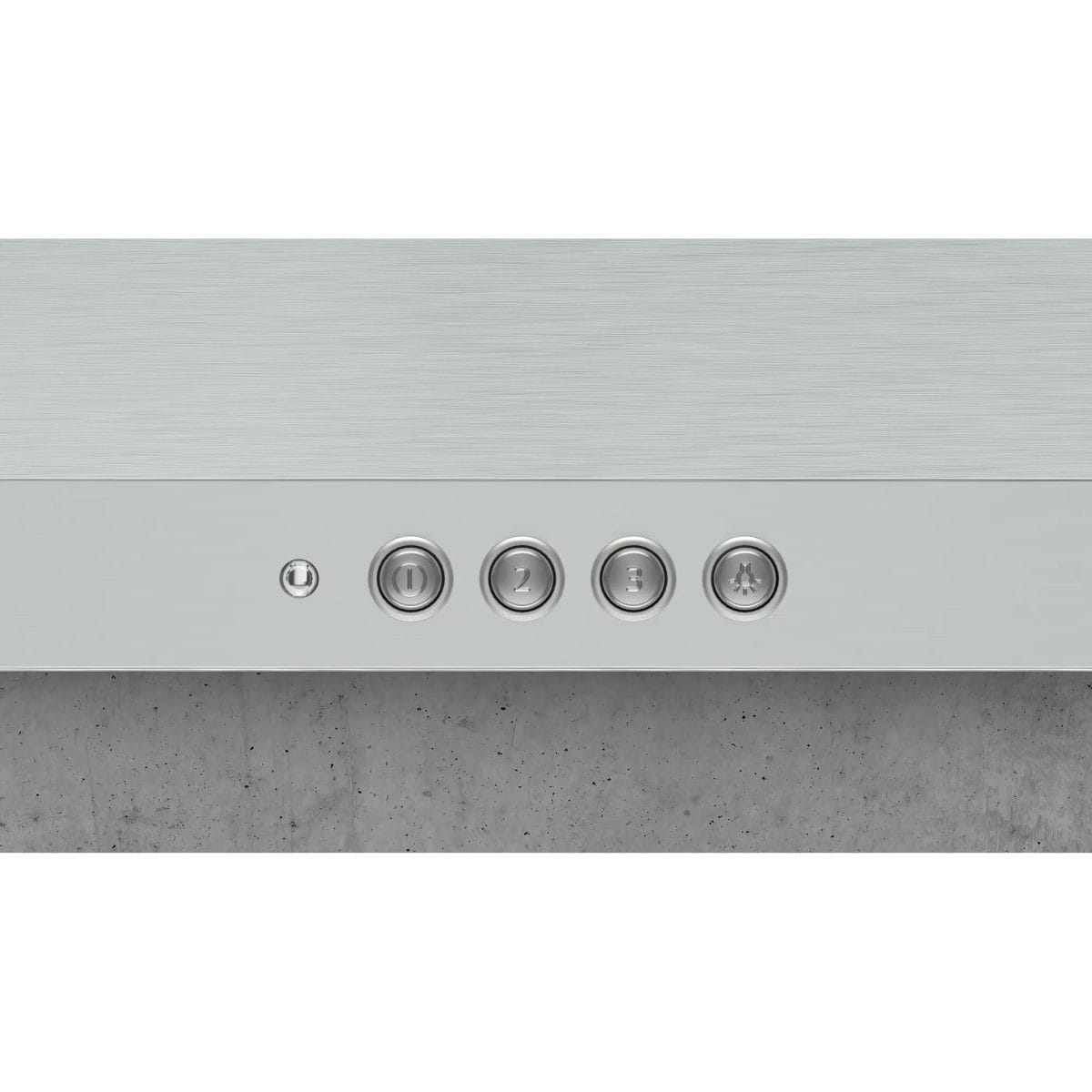

• Push buttons for extractor speeds and light: Metal grease filter, dishwasher safe

Environment and safety:

• Energy Efficiency Class: D*
• Average Energy Consumption: 72.8 kWh/year*
• Blower Efficiency Class: E*
• Lighting Efficiency Class: A*
• Grease Filtering Efficiency Class: C*

Technical Data

• Typology: Wall-mounted
• Approval certificates: CE, G-Mark, VDE
• Length electrical supply cord: 120 cm
• Height of the chimney: 410-765/410-765 mm
• Height of product, without chimney: 250 mm
• Net weight: 13.6 kg
• Type of control: mechanical
• Number of speed settings: 3
• Maximum output air extraction: 380 m³/h
• Maximum output recirculating air: 235 m³/h

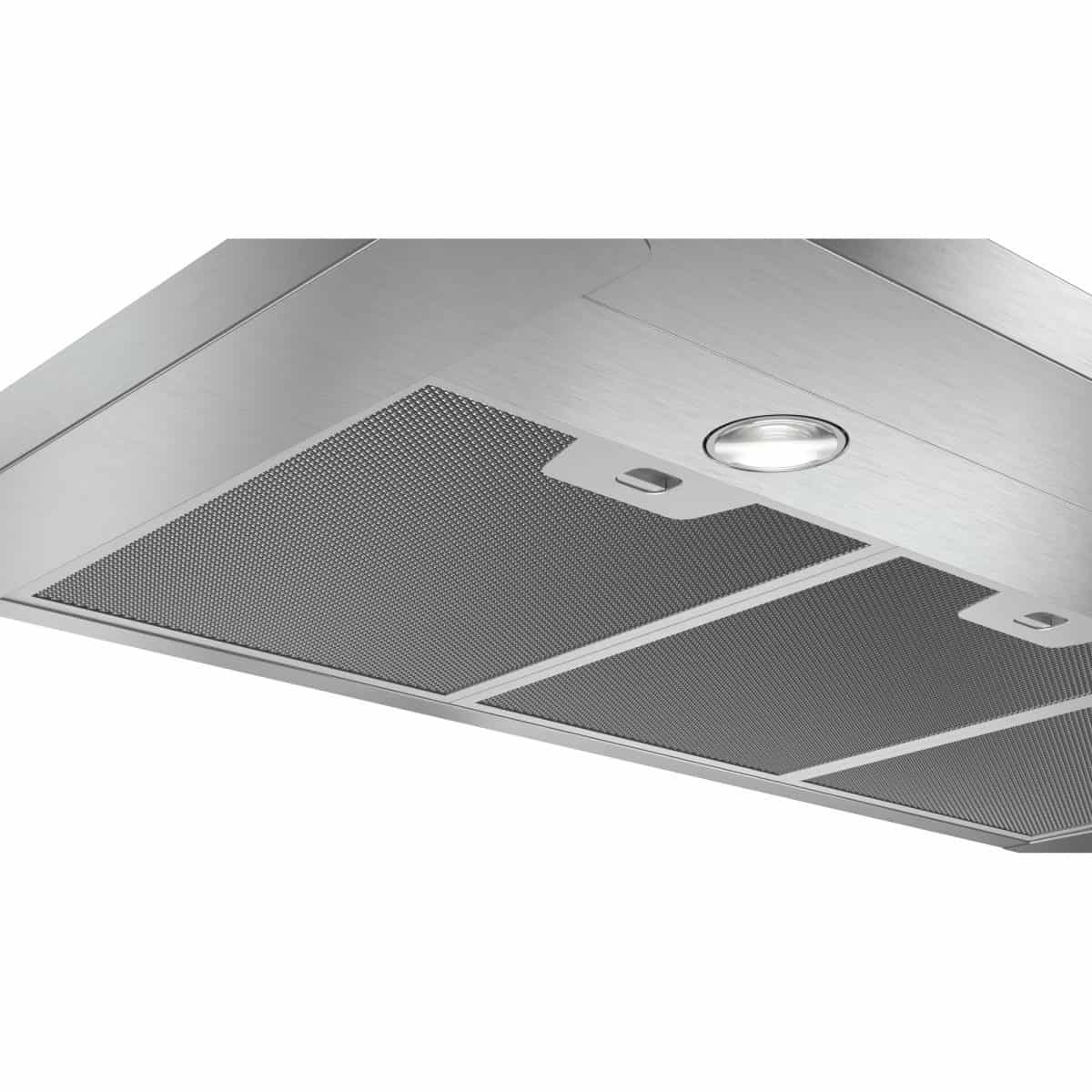

• Number of lights: 2
• Noise level: 64 dB(A) re 1 pW
• Diameter of air outlet: 150 mm

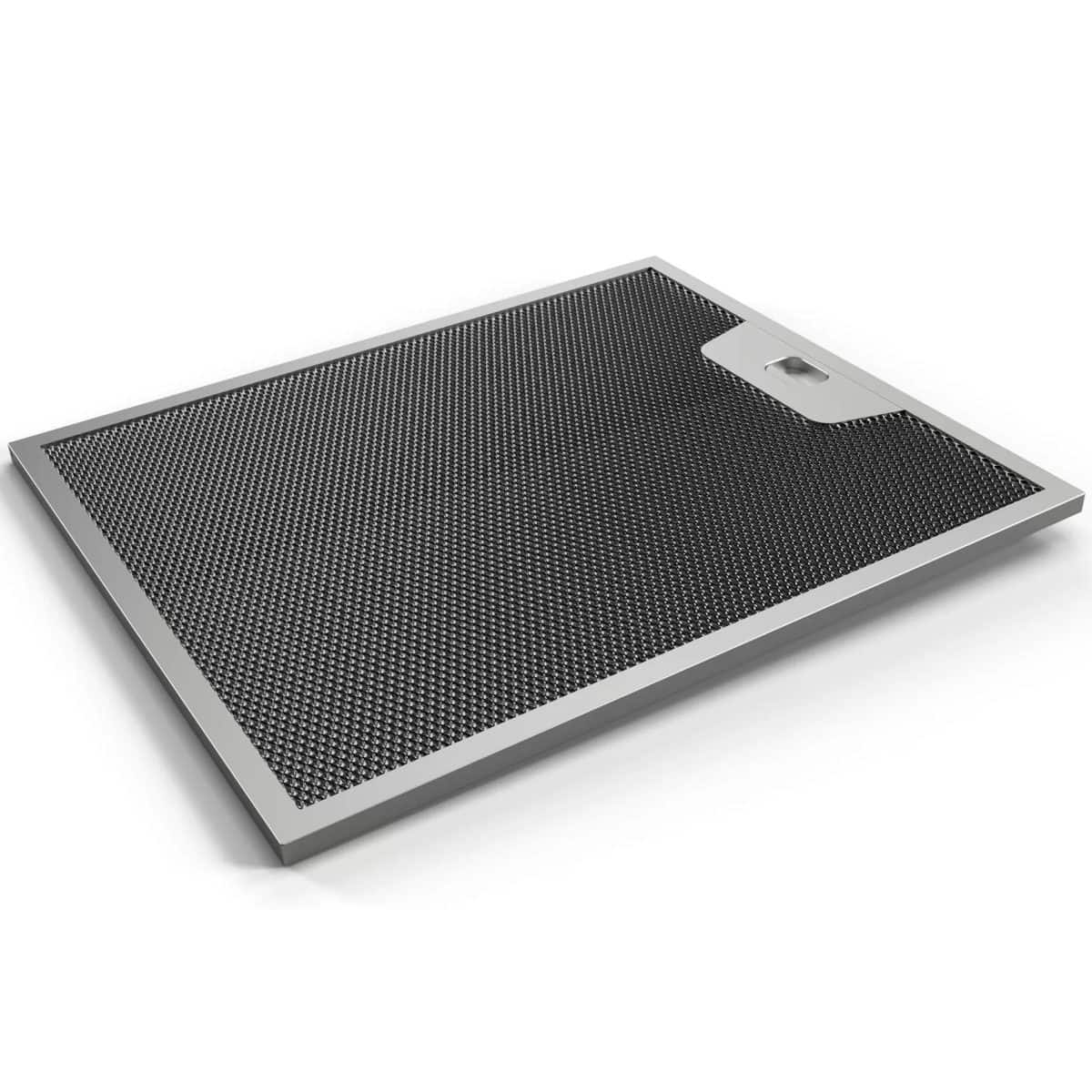

• Grease filter material: Washable aluminium
• Odour filter: No
• Operating Mode: Convertible
• Optional accessories: LA10KPA6
• Type of lamps used: LED
• Total power of the lamps: 10 W
• Grease filter type: Kassette
• Connection Rating: 135 W
• Voltage: 220-240 V
• Frequency: 50 Hz
• Plug type: GB plug
• Installation typology: Wall-mounted
• Material body: Stainless steel
• Approval certificates: CE, G-Mark, VDE
• Plug type: GB plug
• Dimensions of the product, with chimney (if exists) (in): / x x
• Dimensions of the packed product: 15.74 x 39.76 x 22.83
• Net weight: 30.000 lbs
• Gross weight: 34.000 lbs
• Motor location: Integrated motor in hood body
• No-return airflow flap: No
• Length electrical supply cord: 120 cm
• Dimensions of the product, with chimney (if exists): 790-1015 x 898.0 x 470.0 mm
• Dimensions of the packed product (HxWxD): 400 x 1010 x 580 mm
• Net weight: 13.6 kg
• Gross weight: 15.3 kg

Manuals and Documents

• User Manuals
• Installations instructions
• Product sheet
