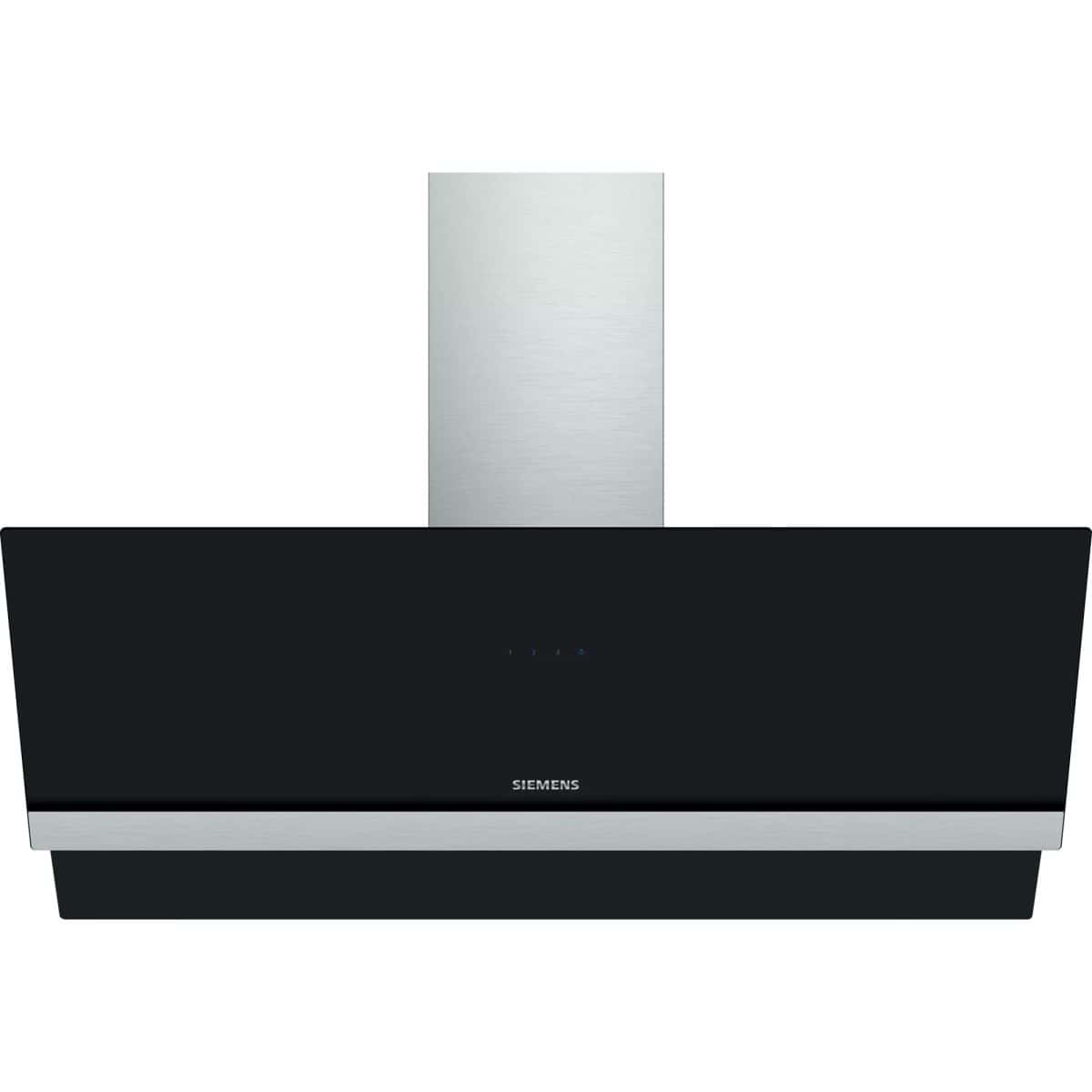

Siemens Wall-mounted Chimney Hood Clear Glass Black 90cm

The wall-mounted chimney hood: mount it on the wall, giving you complete freedom in your kitchen planning.

Comfort:

• Suitable for ducted or recirculated operation

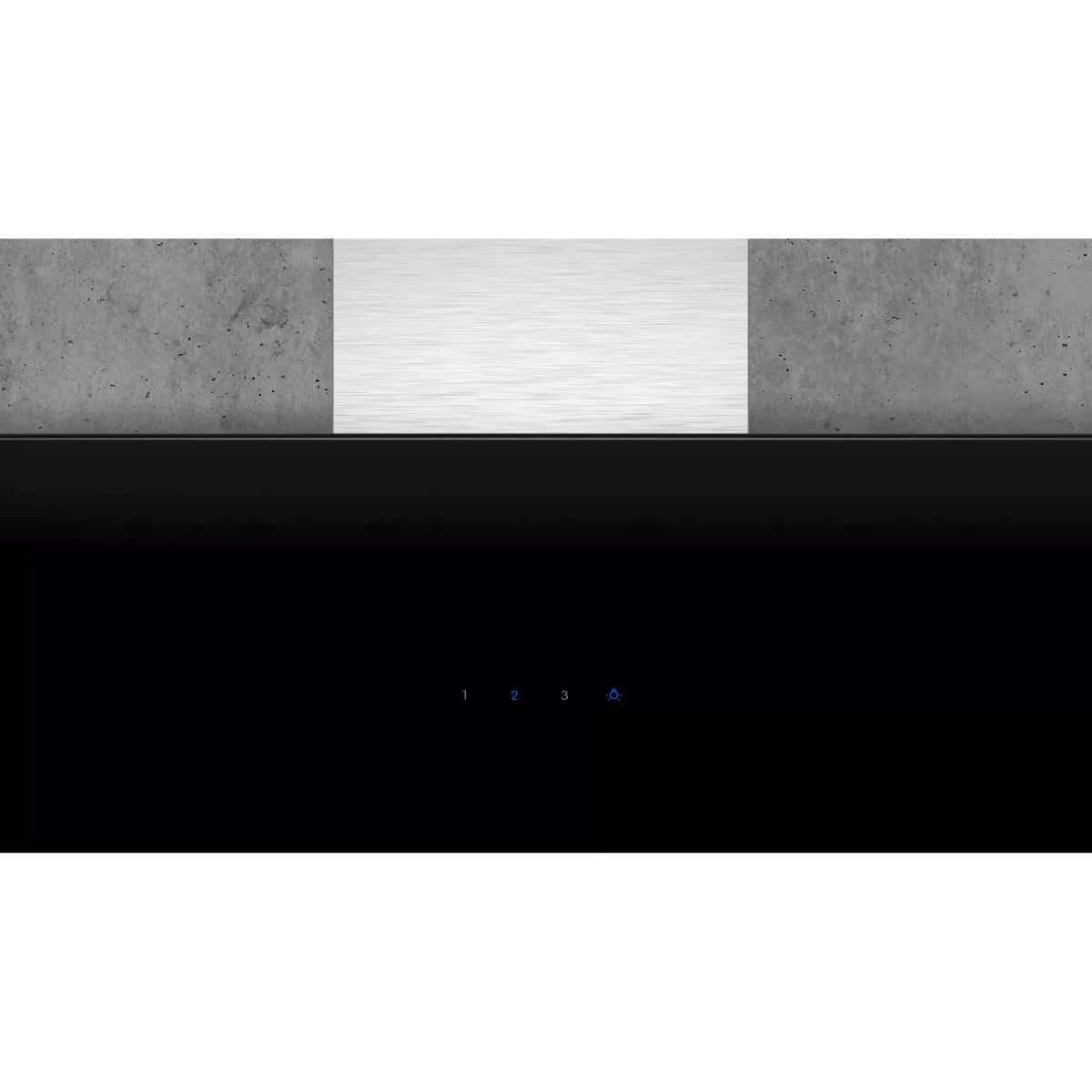

• Electronic via touchControl with Electronic display
• touchControl with Electronic display
• 3 speeds
• Rim extraction
• Twin channel high performance fan motor
• Filter cover glass
• Metal grease filter, dishwasher safe
• Recirculating kit

Technical Data

• Typology: Wall-mounted
• Approval certificates: G-Mark
• Length electrical supply cord: 200 cm
• Height of product, without chimney: 350 mm
• Net weight: 16.9 kg
• Type of control: Electronic
• Number of speed settings: 3
• Maximum output air extraction: 638 m³/h
• Maximum output recirculating air: 290 m³/h
• Number of lights: 2
• Noise level: 64 dB(A) re 1 pW
• Diameter of air outlet: 120 / 150 mm
• Grease filter material: Washable aluminium
• Odour filter: No
• Operating Mode: Convertible
• Optional accessories: LZ10GKA00
• Grease filter type: Kassette
• Connection Rating: 216 W
• Fuse protection: 10 A
• Voltage: 220-240 V
• Frequency: 50 Hz
• Plug type: GB plug
• Installation typology: Wall-mounted
• Material body: Glass, Lacquered
• Approval certificates: G-Mark
• Plug type: GB plug
• Dimensions of the product, with chimney (if exists) (in): / x x
• Dimensions of the packed product: 17.91 x 27.16 x 18.11
• Net weight: 37.000 lbs
• Gross weight: 42.000 lbs
• Motor location: Integrated motor in hood body
• No-return airflow flap: No
• Length electrical supply cord: 200 cm
• Dimensions of the product, with chimney (if exists): x 896.0 x 386.0
• mm
• Dimensions of the packed product (HxWxD): 455 x 690 x 460 mm
• Net weight: 16.9 kg
• Gross weight: 19.0 kg

Manuals and Documents

• User Manuals
• Installations instructions
• Product Sheet
