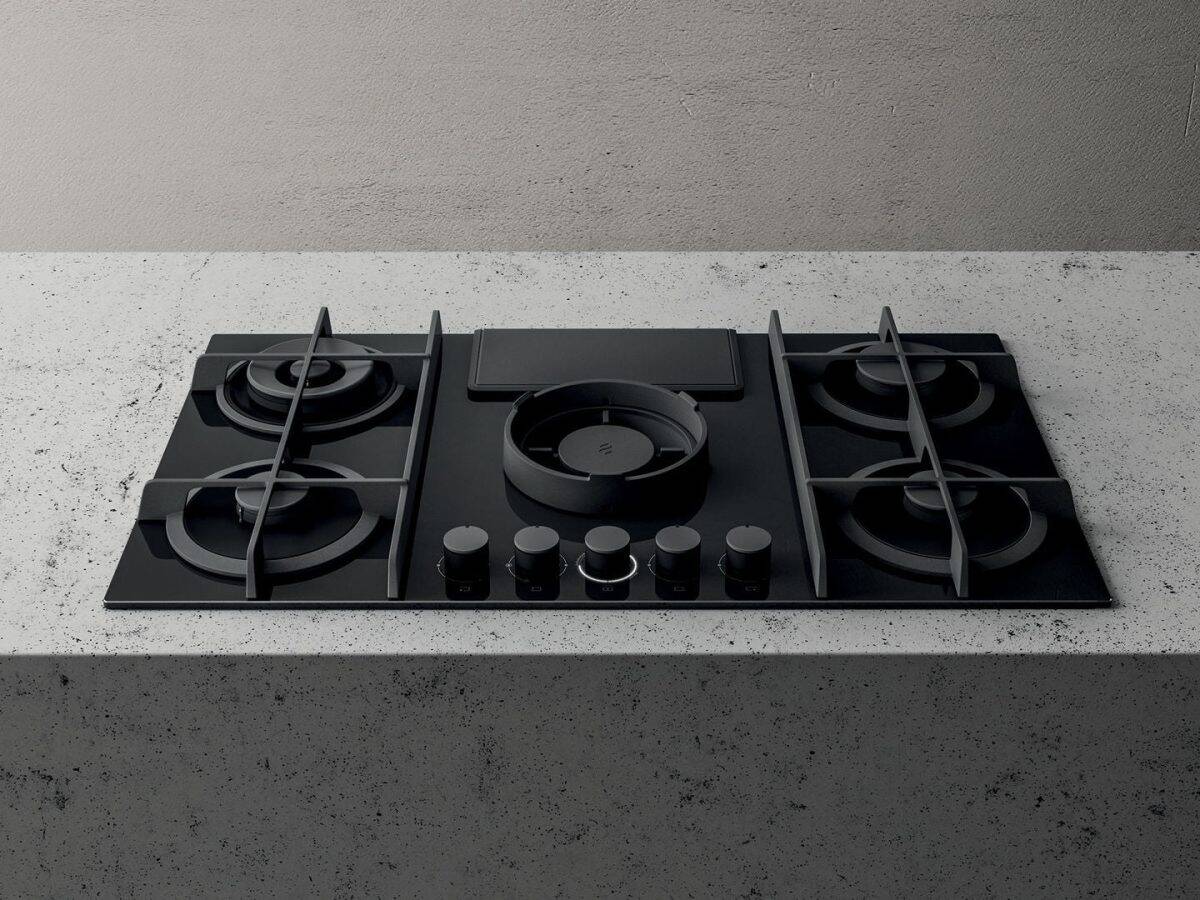

The first GAS hob with an integrated hood on the market, designed with style to match the tradition of the flame with the innovation of a powerful integrated aspiration.
The custom and serenity of cooking on the flame today meet one of the most innovative solutions on the market in terms of aspiration. A modern and elegant glass and cast iron design to bring a technologically advanced hob to your kitchen, developed in compliance with all safety standards to find the right balance between the flames of the burners and a new suction from below that replaces the traditional kitchen hood.
The flat grids are carefully designed to facilitate every movement with the pan avoiding the need to lift it to change the burner, while the back cover completes the whole adding an elegant and useful support base.
Grease and high-performance regenerable odor filters can be removed from the top without any effort, in the same way, it is possible to access the inner part to clean from accidentally leaking out of the pots. In addition, a special valve allows the discharge of any spilled liquid, to ensure maximum hygiene to your kitchen.
Features
Delay Switch Off
A smart timer feature allows you to set the automatic switch-off of the product after a predetermined time. Delayed shutdown may be used in order to leave the hood on even after cooking, so to fully remove stubborn odors and residual humidity.
Maintenance Alarm
Products equipped with this feature have an indicator light that alerts the user when grease and odor filters are about to reach maximum saturation. Therefore, it’s easy to always know when it’s time to wash or replace them, in order to keep the appliance clean and operating properly over time.
Total Integration
Always more popular in today’s modern kitchen
Long Life Filter ++
Long-Life Filters ++ have been developed by Elica to reach maximum performance levels and guarantee odor filtering efficiency, which is much higher than average. In order to simplify maintenance operations and reduce environmental impact, these anti-odor filters can be regenerated, lasting up to 3 to 5 years, thus avoiding frequent replacements and waste.
Easy Maintenance
Keeping your hood clean not only ensures maximum hygiene in the kitchen but also long life for the product. The Elica models are designed with materials and finishes for instant maintenance operations. All the components, such as the grease and odour filters, can be easily accessed and removed so they can be washed or rapidly replaced.
Multi Flexi Space
Lots of large pans on the stove together? With the Multi Flex Space system, you have more space available both in length and width when using large pots. You can slide the pans from one ring to another without lifting them thanks to the closed cross grids which create a flat, continuous surface. A practical cast iron worktop ensures that everything you need is always at hand.
Dual Burner
With Dual Burner, having small or large pans is not a problem. The innovative burner features a double crown with independent ignition of both burners, so perfect for both a small mocha coffee and a big pan.
Key Information
- Energy Efficiency Rating: A
- Maximum Extraction Rate (Normal Use): 400 M³/H
- Maximum Extraction Rate (Using Booster): 600 M³/H
- Maximum Noise Level (Normal Use): 62 dB
- Maximum Noise Level (Using Booster): 71 dB
- Suitable For Air Extraction
Features
- 3 Speeds and 2 Booster Power Levels (Air Extraction)
- Cast Iron Plate For Pot/Object Support
- Direct Control
- Easy To Clean
- Easy To Maintain
- Electronic Extraction Control
- Intensive Speed Function
- Multi-Flexi Space
Hob Specification
- 1st Element (Dual Special) – 3.50 kW
- 2nd Element (Semi Rapid) – 1.75 kW
- 3rd Element (Semi Rapid) – 1.75 kW
- 4th Element (Rapid) – 3.00 kW
Technical Information
- Duct Diameter: 150mm
- Frequency: 50 Hz
- Total Absorption – Induction Hob: 10 W
- Total Power Absorption – Aspiration System: 310 W
- Voltage: 220 – 240 V
Included Accessories
- Grease aluminium Filter included
- HP regenerable anti-odor ceramic filter included
Downloads
Dimensional Drawing Recycling
Technical Drawing PRF0147740 – PRF0147742
Technical Drawing PRF0147741 – PRF0147743
