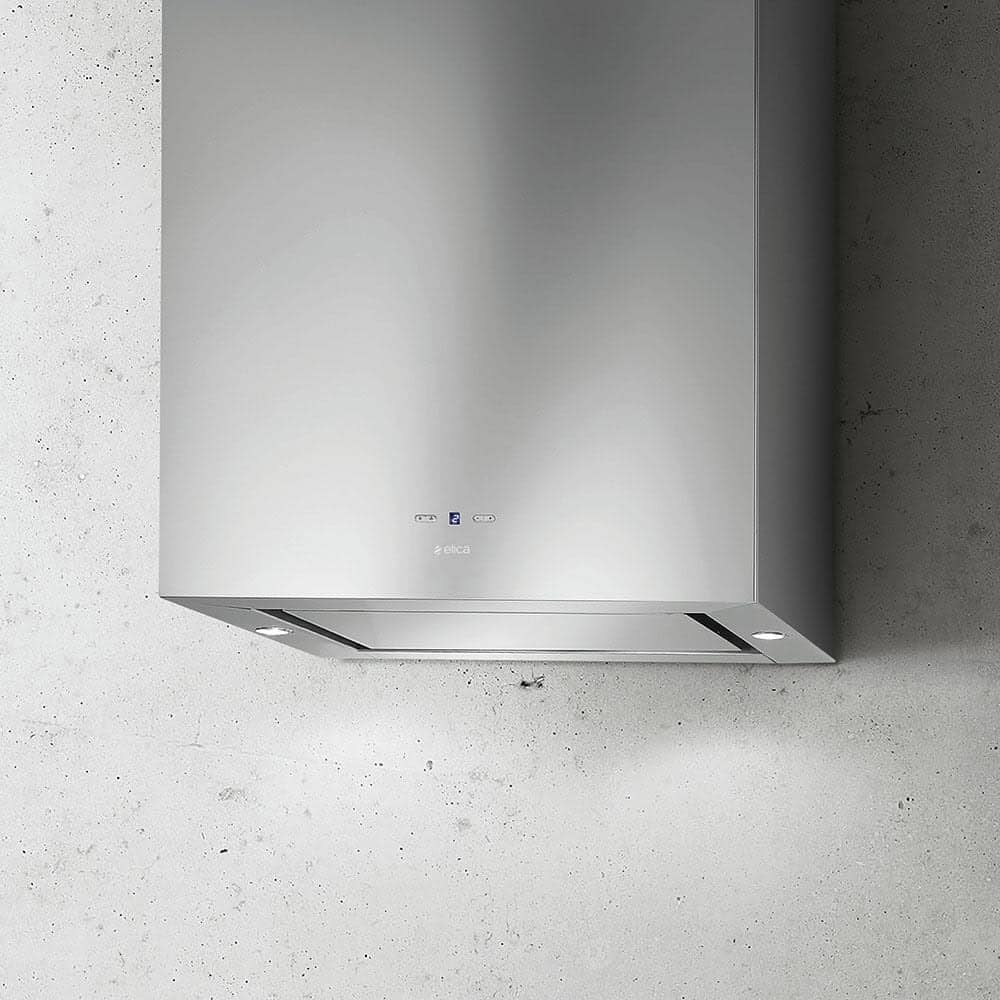

Elica Kuadra 60cm Built-In Stainless Steel Wall Mounted Hoods

Features

Back Aspiration

There are now more ways of installing your extraction hood. On models with this function, it is possible to rotate the conveyor and directly connected the hood with the outlet in the wall behind it or in other models, the special architecture of the product allows the wall outlet to be created with a 90-degree elbow pipe. Thus, you can rely on maximum extraction while preserving the original outward appearance of the product which will not be modified by pipes or additional visible flues.

Long Life Filter

To ensure the best performance and long-term duration of your hood, the traditional filters must be replaced every 3-6 months. To simplify the maintenance operations, Elica has designed the innovative, regenerable Long Life odour filter which lasts up to three years. Just wash it with hot water and neutral soap or in the dishwasher at 65° and dry it in the oven at 100° for ten minutes every two months to keeping it looking good as new. The level of efficiency is about 60%.

Technical Data

• Width: 60cm
• Size: 60 cm
• Version: Duct Out
• Finishes: Stainless Steel
• Lighting: Led 2×2,5 w 2700 k
• Controls: 3s+B Electronic Push Button With Display
• Min-Max Airflow: 300-800 m³/h
• Min-Max Noise Level: 48-62 db(A)
• Total Absorption: 256 W
• Duct Size: 150 mm

Downloads

Instruction Handbook
Dimensional Drawing
