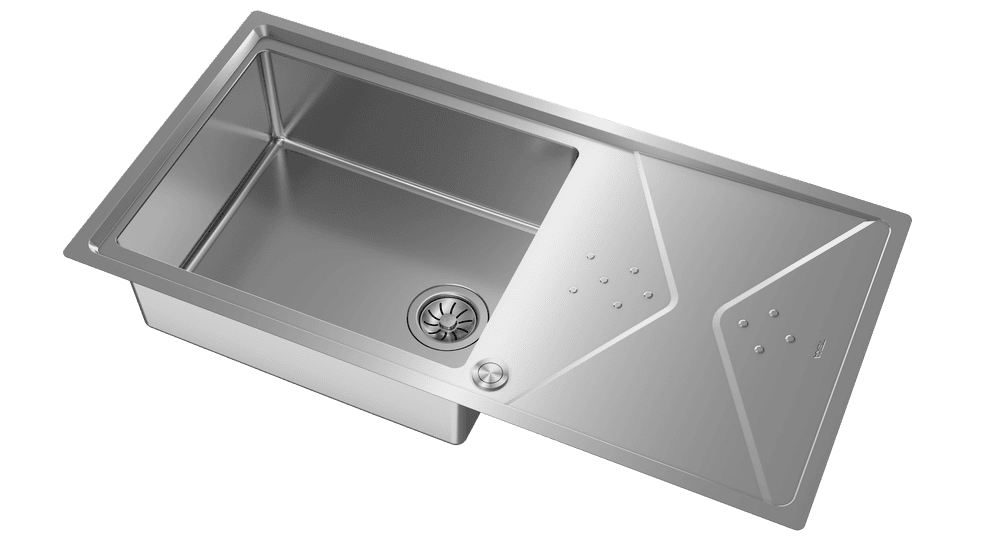

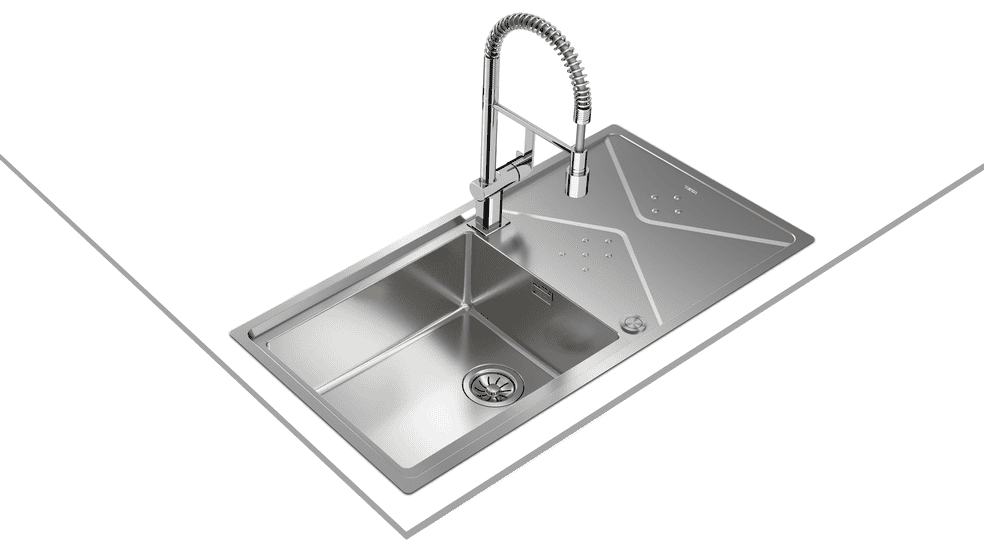

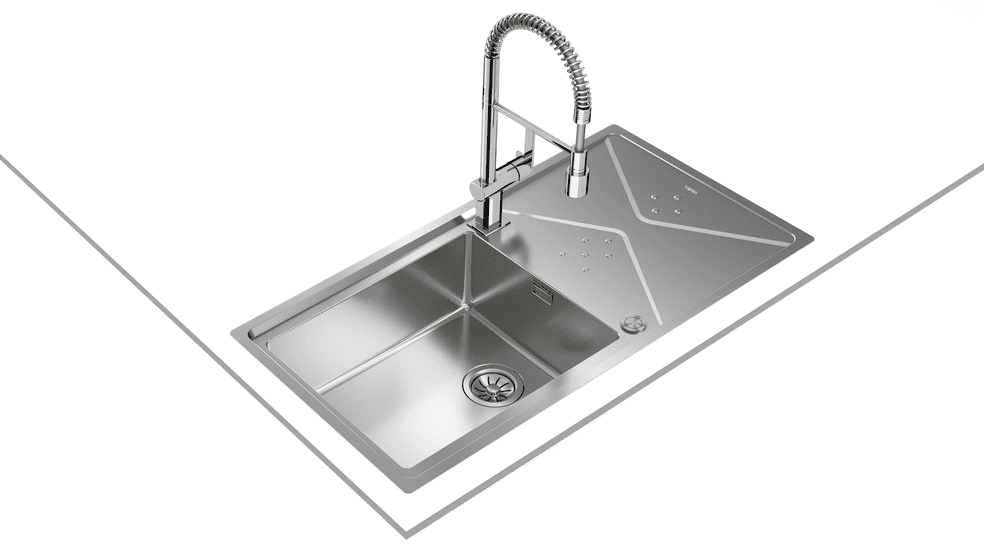

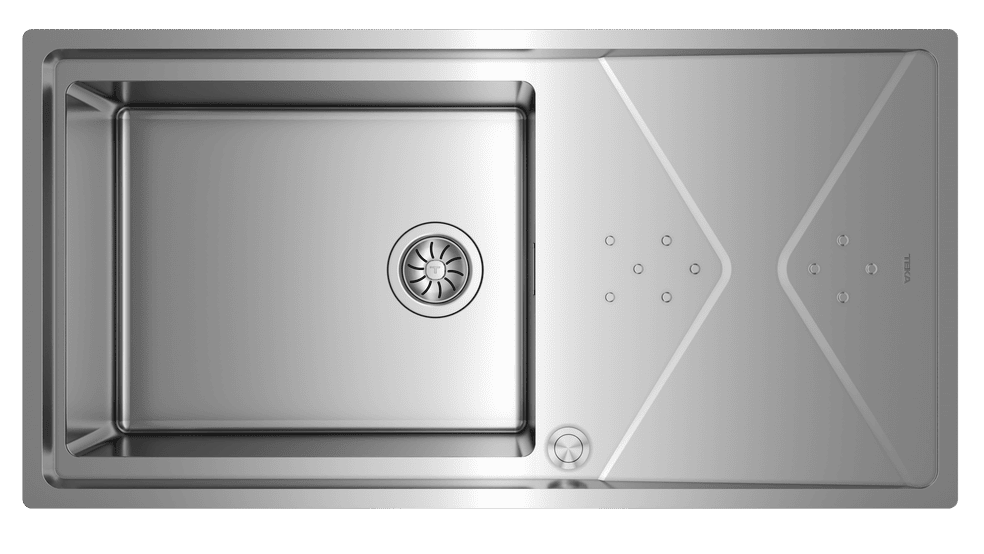

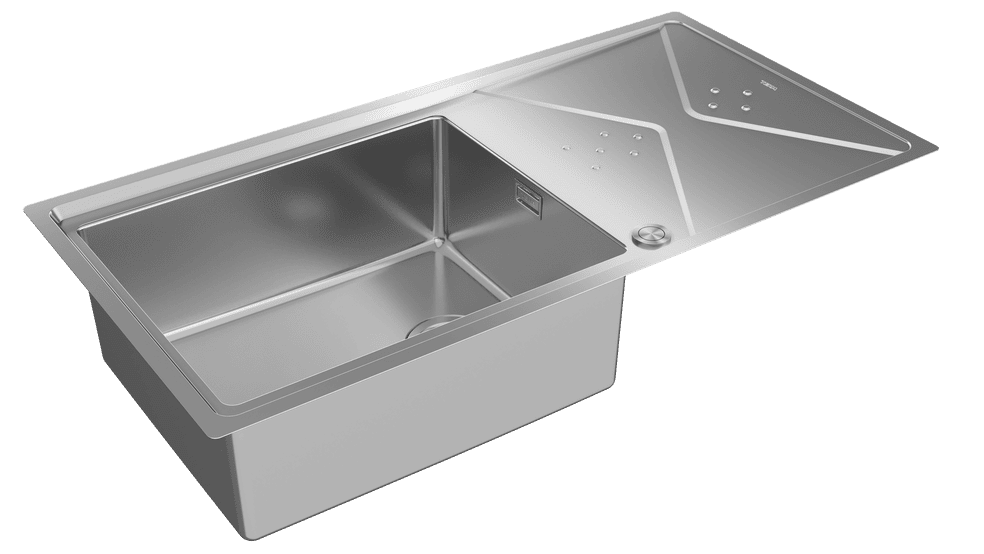

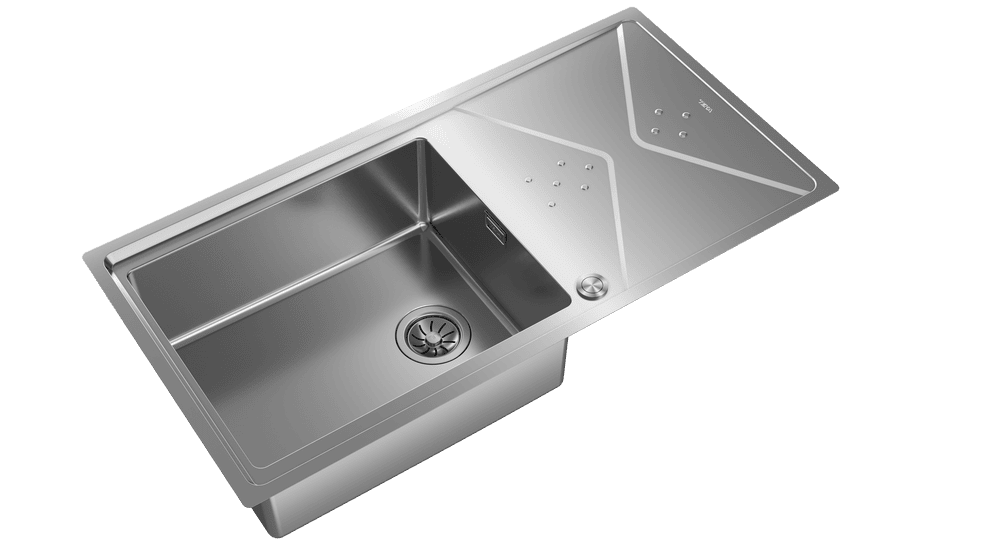

TEKA MAESTRO Brooklyn 60 M-XP 1B 1D PLUS

Singular Features

• Brooklyn Series
• Stainless steel sink, Polished finish
• One bowl, one drainer, reversible
• 2-in-1 installation possibilities: top or flush
• V-control 3½” automatic waste basket with siphon
• New HelixPRO waste basket
• SilentSmart, 50% less noise
• 210 mm deep bowl
• 60 cm base unit

Technical Details

General measures

• Product width (mm): 504
• Product length (mm): 984
• Net weight (Kg): 6,1

 View technical drawing

Main Bowl

• Main Bowl Length (mm): 500
• Main Bowl Width (mm): 400
• Main Bowl Depth (mm): 210

Other features

• Material: Stainless Steel
• Type of installation: Top,Flush
• Number of tap holes: 2
• Valve hole type: 3½”
• Overflow hole: Rectangular
• Sink Bowl / Top thickness (mm): 1,0 / 1,0

Others

• Base unit (cm): 60

Sink Lay out

• Number of bowls: 1B 1D
• Number of drainers: 1B 1D
• Drainer position: Reversible

Accessories

• Soundproof: Yes
• SilentSmart: Yes
• Installation clips: Yes
• Siphon: Yes

Downloads

Full product card

Technical drawing

High resolution images

Lifetime warranty conditions

Leaflet

NOTE: The Price does not include installation,
