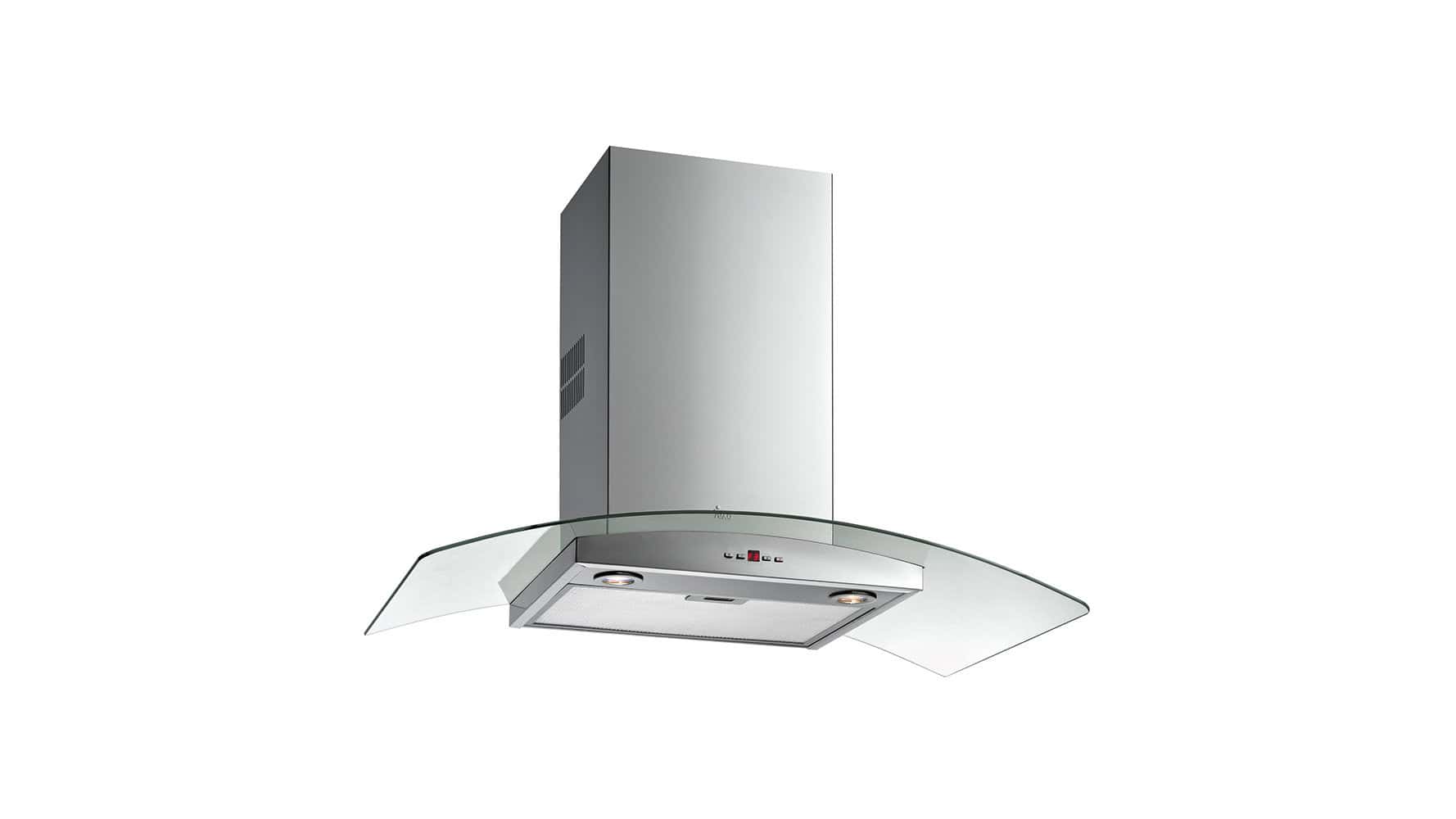

TEKA EASY NC 680 Glass wing wall-mounted extractor hood NC 680

Singular Features

• Ultraslim glass wing decorative hood
• Eco power
• Backlit electronic panel with white display
• Conventional aspiration
• 3 speeds + 1 intensive
• Exhaust capacities:
• Free Outlet (m³/h): 825
• Max. (m³/h): 637
• Min. (m³/h): 298
• Noise (LwA) Max Speed 60 dB
• Noise (LwA) Min Speed 52 dB
• LED ilumination
• 1 stainless steel-aluminium filter
• Stop delay timer
• Reinforced glass upper structure

Technical Details

General measures

• Product height (mm): 674-1004
• Product width (mm): 600
• Product depth (mm): 500
• Net weight (Kg): 12,9

 View technical drawing

Particular characterisitics

• Certificates: CE; CB; Rohs
• Ø Outlet (mm): 150
• Type of inner light: LED
• Inside light Consumption (W): 3
• Plug type: European plug
• Power rate (V): 220-240
• Frequency (Hz): 50/60
• Total hood power (W): 236
• Number of motors: 1
• Motor power (W): 230

Accessories

• Anti Return valve: Yes
• Outlet reduction: Yes
• Optional Charcoal Filter: D4C
• Conventional recirculation kit (opt) – w/tube cover: SET 1/N1

Models

• Number of filters: 1
• Filter description: Stainless Steel filters
• Control panel: Electronic soft bottons with display
• Stop delay timer: Yes
• Filter saturation indicator: Yes
• Number of speeds: 3+1

Downloads

 Manuals

 Product card

 Technical drawing

 Family catalogue

 High resolution images

 Energy label

 EU Product Information Sheet
