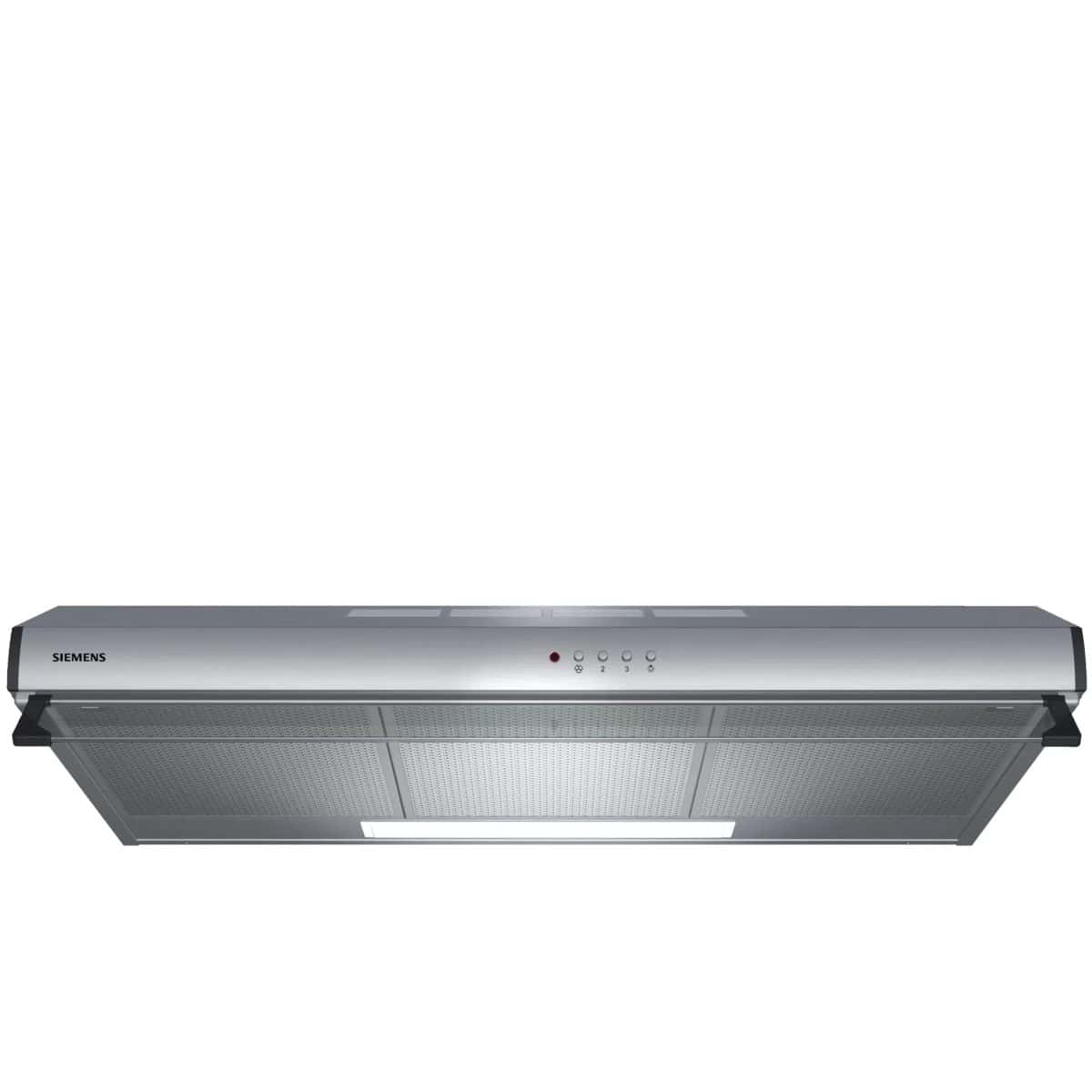

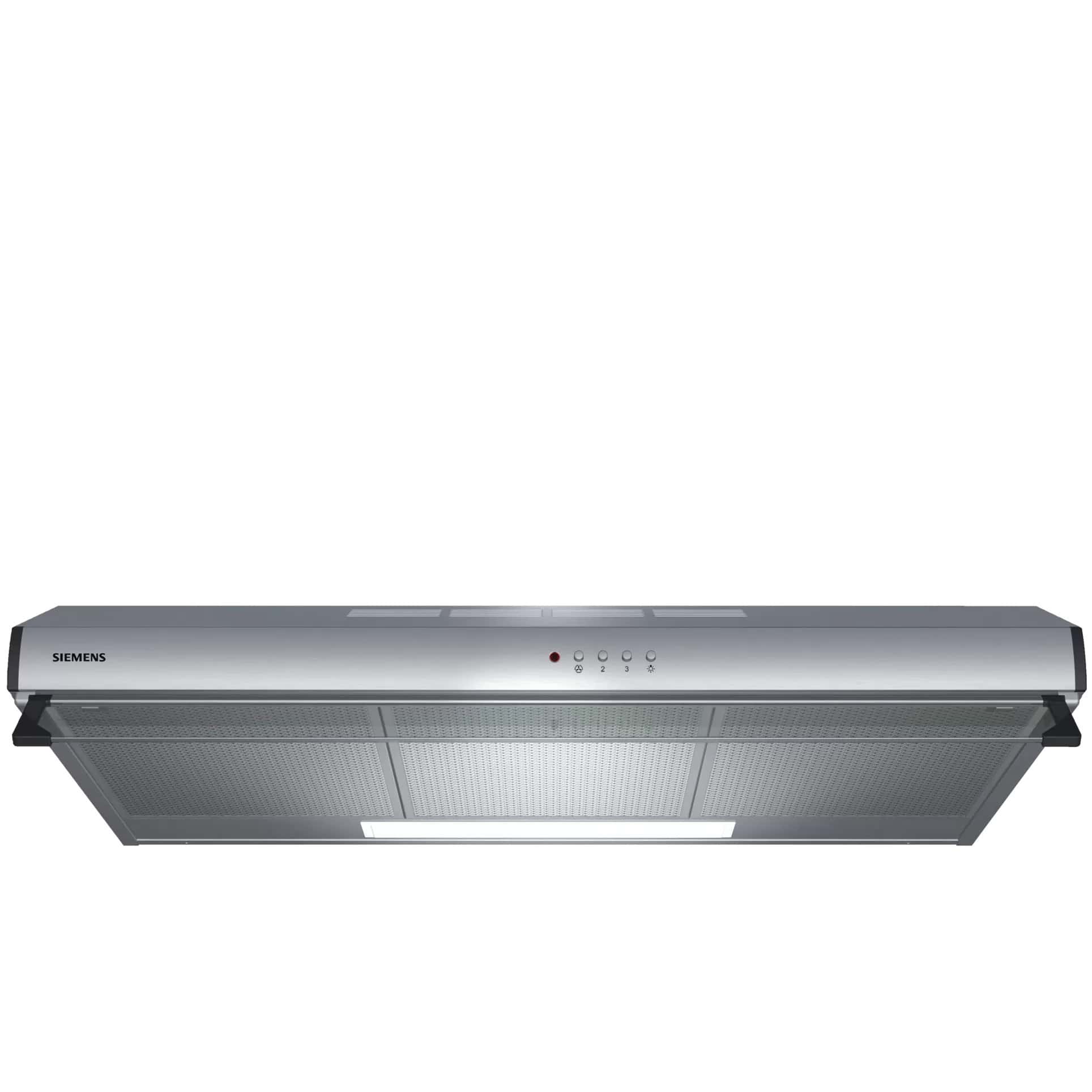

Siemens Under Cabinet Cooker Hood Stainless Steel 90cm

The built-under-cooker hood is installed beneath the upper cabinet or on the wall to save space.

extraction rate

The 350 m3/h extraction rate supplies clean air when cooking.

Comfort:

• • Suitable for ducted or re-circulated extraction: Push button controls for 3 speeds

• • Twin motor: Adjustable glass visor

• • 2 x halogen – energy saving lamps: Metal grease filter, dishwasher safe

Technical Data

• • Typology: Built-in/Built-under

• • Approval certificates: CE, G-Mark

• • Length electrical supply cord: 130 cm

• • Net weight: 10.0 kg

• • Type of control: mechanical

• • Number of speed settings: 3

• • Maximum output recirculating air: 260 m³/h

• • Number of lights: 2

• • Noise level: 68 dB(A) re 1 pW

• • Diameter of air outlet: 120 mm

• • Grease filter material: Washable aluminium

• • Odour filter: Yes

• • Operating Mode: Convertible

• • Optional accessories: LZ27000

• • Type of lamps used: Halogen

• • Total power of the lamps: 56 W

• • Grease filter type: Kassette

• • Connection Rating: 306 W

• • Fuse protection: 13 A

• • Voltage: 220-240 V

• • Frequency: 50 Hz

• • Plug type: GB plug

• • Installation typology: Built-under

• • Material body: Stainless steel

• • Approval certificates: CE, G-Mark

• • Plug type: GB plug

• • Dimensions of the product, with chimney (if exists) (in): / x x

• • Dimensions of the packed product: 8.26 x 37.00 x 21.65

• • Net weight: 22.000 lbs

• • Gross weight: 24.000 lbs

• • Motor location: Integrated motor in hood body

• • No-return airflow flap: No

• • Length electrical supply cord: 130 cm

• • Dimensions of the product, with chimney (if exists): 150 x 900.0 x

• • 482.0 mm

• • Dimensions of the packed product (HxWxD): 210 x 940 x 550 mm

• • Net weight: 10.0 kg

• • Gross weight: 11.0 kg
