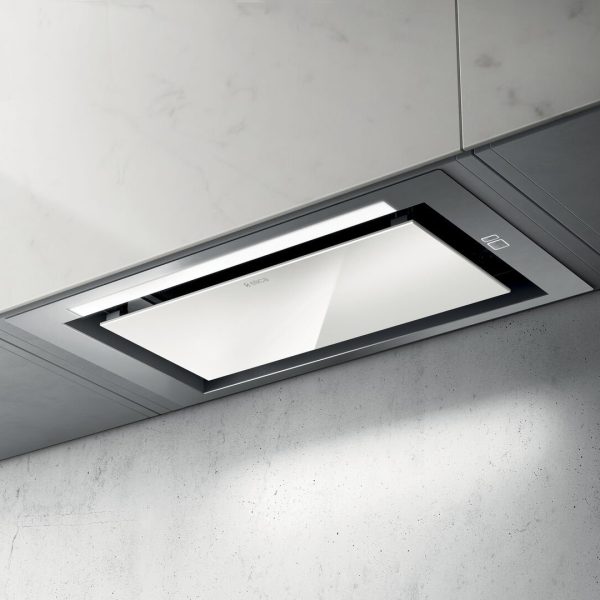

Elica Hidden 2.0 IXGL Built-In Stainless Steel Hoods

Hidden is the concealed extractor hood of Elica offering new design solutions in kitchens with a minimalist style. Hidden offers excellent performance, with extraction up to 475 cubic metres. It is available in the stainless steel and stainless steel/white glass finishes, with LED diffused lighting and touch controls. With Hidden, total efficiency is elegantly enclosed in the cabinet.

Features

Delay Switch Off

A smart timer feature allows you to set the automatic switch-off of the product after a predetermined time. Delayed shutdown may be used in order to leave the hood on even after cooking, so to fully remove stubborn odors and residual humidity.

Maintenance Alarm

Products equipped with this feature have an indicator light that alerts the user when grease and odor filters are about to reach maximum saturation. Therefore, it’s easy to always know when it’s time to wash or replace them, in order to keep the appliance clean and operating properly over time.

Perimeter Aspiration

Hood extraction is efficiently distributed all along the perimeter of the appliance. The extraction zone is completely hidden by a panel, giving it a more elegant, modern, cleaner look.

Total Integration

The total look trend is becoming increasingly popular in kitchens now, guaranteeing a uniform, linear design with respect to the space. The Total Integration products have been designed to be seamlessly integrated into the kitchen whilst maintaining harmony with the surroundings.

Long Life Filter

To ensure the best performance and long-term duration of your hood, the traditional filters must be replaced every 3-6 months. To simplify the maintenance operations, Elica has designed the innovative, regenerable Long Life odour filter which lasts up to three years. Just wash it with hot water and neutral soap or in the dishwasher at 65° and dry it in the oven at 100° for ten minutes every two months to keeping it looking good as new. The level of efficiency is about 60%.

Technical Data

• Width: 60, 90cm
• Version: Duct Out
• Finishes: Stainless Steel, Stainless Steel + White Glass
• Lighting: Strip Led 1×7 w 3500 k
• Controls: 3s+B Electronic Push Button
• Min-Max Airflow: 300-800 m³/h
• Min-Max Noise Level: 51-67 db(A)
• Total Absorption: 277 w
• Duct Size: 150 mm
